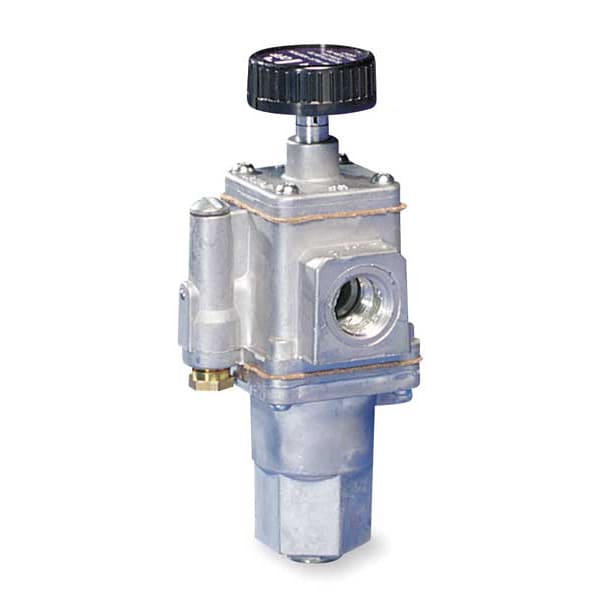

Gas Valve, Liquefied Petroleum, Oxygen, and Natural Gas, 30 mV, Gas Pilot Safety, 1/2 in Inlet Size
| BtuH Capacity | 142,000 BtuH |
|---|---|
| Coil Volts | 30 mV |
| Gas Type | Liquefied Petroleum, Oxygen, and Natural Gas |
| Inlet Size | 1/2 in |
| Outlet Size | 1/2 in |
| Valve Type | Gas Pilot Safety |
| Ambient Temp. Range | -40 to 250 deg F |
| Item | Gas Valve |
| Flow Direction | Straight-Thru |
| Max. Inlet Pressure | 0.5 psi |
| Standards | CSA Approved |
| Installation Orientation | Versatile |
| Includes Conversion Kit | Conversion Kit Not Included |
| Voltage | 0.03 V |
| Port Connection Gender | Female |
| Includes Side Taps | Side Taps Not Included |
| Port Connection Type | NPT |
| Includes On/Off Switch | On/Off Switch Not Included |
| Port Connection Size | 1/2 in |
| For Media | Liquid Propane, Natural Gas |
| Valve Design | Dual |
| Operating Temperature - Maximum | 175 deg F |
| Pilot Type | Standing Pilot |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Includes Pressure Tap | Not Applicable |
| Sensing Type | Flame Sensor |
| Pilot Port Connection Type | Compression |
| Includes Pressure Regulator | Pressure Regulator Not Included |
| Reducer Bushings Included | None |
| Operating Temperature - Minimum | 32 deg F |
| Opening Characteristic | Fast Opening |
| Heating Capacity - Maximum | 142,000 BtuH |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Manufacturer Series | 764 |
| Pilot Port Connection Size | 1/4 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
