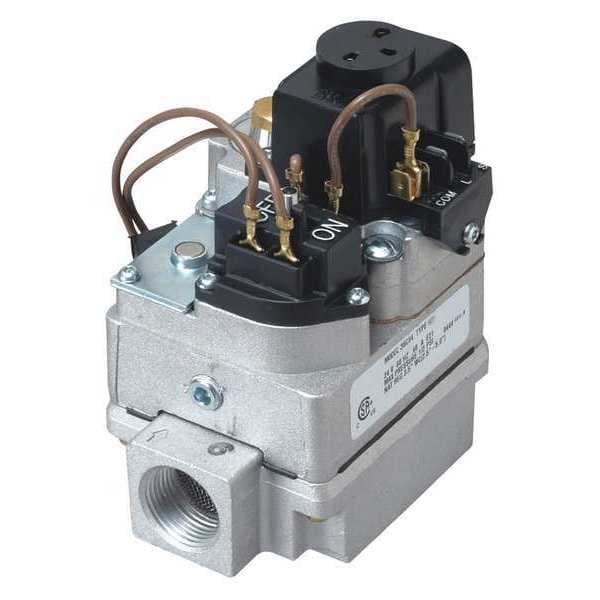

Gas Valve, Natural Gas, Standing Pilot, 24 V, Slow Opening, 0.6A, -40 Degrees to 175 Degrees F
| BtuH Capacity | 50,000 to 400,000 |
|---|---|
| Coil Volts | 24 V |
| Gas Type | Natural Gas |
| Ignition Type | Standing Pilot |
| Inlet Size | 3/4 in |
| Outlet Size | 3/4 in |
| Valve Type | Slow Opening |
| Amps AC | 0.6 A |
| Ambient Temp. Range | -40 to 175 deg F |
| Item | Gas Valve |
| LP Conversion Kit | No |
| Flow Direction | Straight-Thru |
| Side Taps | No |
| Inlet Pressure Tap | Yes |
| Standards | CSA Approved |
| Max. Inlet Pressure | 0.5 psi |
| Opening Characteristic | Slow Opening |
| Port Connection Size | 3/4 in |
| Manufacturer Series | 36C |
| Includes Pressure Regulator | Pressure Regulator Included |
| Operating Temperature - Maximum | 175 deg F |
| Current | 0.6 A |
| Heating Capacity - Maximum | 280,000 BtuH |
| For Media | Natural Gas |
| Includes On/Off Switch | On/Off Switch Included |
| Operating Temperature - Minimum | -40 deg F |
| Port Connection Type | NPT |
| Port Connection Gender | Female |
| Reducer Bushings Included | None |
| Sensing Type | Mercury Switch |
| Includes Pressure Tap | Pressure Tap Inlet Included, Pressure Tap Outlet Included |
| Voltage | 24 V AC |
| Includes Side Taps | Side Taps Not Included |
| Pilot Type | Intermittent Pilot |
| Pilot Port Connection Type | Compression |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Includes Conversion Kit | Conversion Kit Not Included |
| Installation Orientation | Vertical |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Valve Design | Single |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
