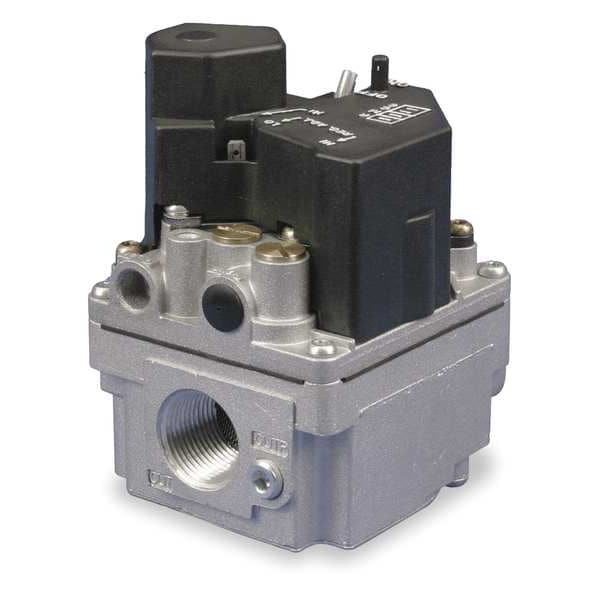

Gas Valve, NG/LP, 2-Stage Intermittent or Hot Surface Ignition, 24 V, 1.5 to 3.5 in wc, 0.54 A
| BtuH Capacity | 300,000 BtuH |
|---|---|
| Coil Volts | 24 V |
| Gas Type | NG/LP |
| Ignition Type | 2-Stage Intermittent or Hot Surface Ignition |
| Inlet Size | 3/4 in |
| Outlet Size | 3/4 in |
| Valve Type | Fast Opening |
| Amps AC | 0.54 A |
| Ambient Temp. Range | -40 to 175 deg F |
| Item | Gas Valve |
| LP Conversion Kit | Yes |
| Pressure Setting Range | 1.5 to 3.5 in wc |
| Flow Direction | Straight-Thru |
| Includes | Natural to LP Gas Conversion Kit |
| Inlet Pressure Tap | Yes |
| Side Taps | No |
| Includes Conversion Kit | Conversion Kit Included |
| Port Connection Gender | Female |
| Installation Orientation | Vertical |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Operating Temperature - Minimum | -40 deg F |
| Sensing Type | Flame Sensor |
| Reducer Bushings Included | None |
| Voltage | 24 V AC |
| Valve Design | Dual |
| Pressure Tap Connection Size | 1/8 in |
| Overall Length | 3-1/4 in |
| Manufacturer Series | 36H |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Includes On/Off Switch | On/Off Switch Included |
| For Media | Liquid Propane, Natural Gas |
| Pressure Tap Connection Type | NPT |
| Electrical Connections | Quick Connect Terminal |
| Port Connection Type | NPT |
| Current | 0.54 A |
| Includes Pressure Regulator | Pressure Regulator Included |
| Overall Height | 5 in |
| Includes Pressure Tap | Pressure Tap Inlet Included, Pressure Tap Outlet Included |
| Operating Temperature - Maximum | 175 deg F |
| Heating Capacity - Maximum | 300,000 BtuH |
| Includes Side Taps | Side Taps Not Included |
| Pilot Type | Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot |
| Opening Characteristic | Fast Opening |
| Port Connection Size | 3/4 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
