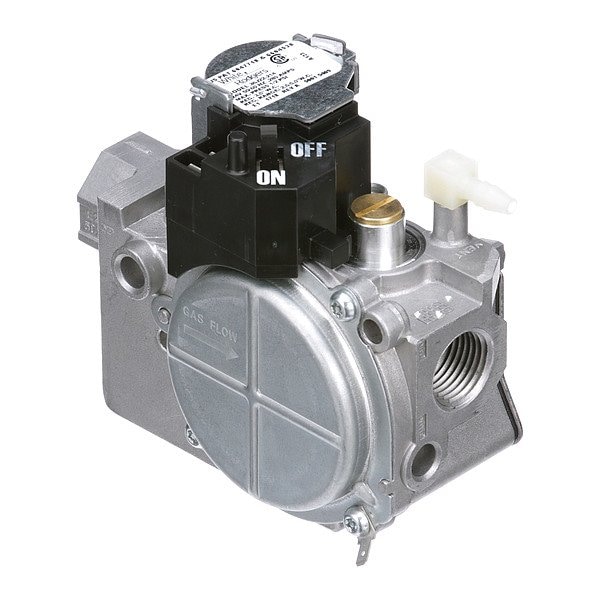

Gas Valve, NG/LP, Hot Surface, 24 V, Fast Opening, -40 Degrees to 175 Degrees F, 1/2 in Inlet Size
| BtuH Capacity | 140,000 BtuH |
|---|---|
| Coil Volts | 24 V |
| Gas Type | NG/LP |
| Ignition Type | Hot Surface |
| Inlet Size | 1/2 in |
| Outlet Size | 1/2 in |
| Reducer Bushing Kit | 1/2 x 3/8 |
| Valve Type | Fast Opening |
| Ambient Temp. Range | -40 to 175 deg F |
| Item | Gas Valve |
| LP Conversion Kit | Yes |
| Flow Direction | Straight-Thru |
| Inlet Pressure Tap | Yes |
| Side Taps | Yes |
| Pressure Tap Connection Size | 5/16 in |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Sensing Type | Flame Sensor |
| Current | 0.3 A |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Opening Characteristic | Fast Opening |
| Port Connection Size | 1/2 in |
| Operating Temperature - Minimum | -40 deg F |
| Manufacturer Series | 36J |
| Heating Capacity - Maximum | 140,000 BtuH |
| Overall Length | 4-11/16 in |
| Includes On/Off Switch | On/Off Switch Included |
| Overall Height | 4-1/4 in |
| Includes Pressure Tap | Pressure Tap Inlet Included, Pressure Tap Outlet Included |
| Includes Side Taps | Side Taps Not Included |
| Pilot Type | Direct Spark Ignition, Hot Surface Ignition |
| Electrical Connections | Quick Connect Terminal |
| Port Connection Type | NPT |
| Port Connection Gender | Female |
| Valve Design | Single |
| For Media | Liquid Propane, Natural Gas |
| Includes Pressure Regulator | Pressure Regulator Included |
| Reducer Bushings Included | (2) 1/2 x 3/8 |
| Operating Temperature - Maximum | 175 deg F |
| Voltage | 24 V AC |
| Installation Orientation | Versatile |
| Includes Conversion Kit | Conversion Kit Included |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
