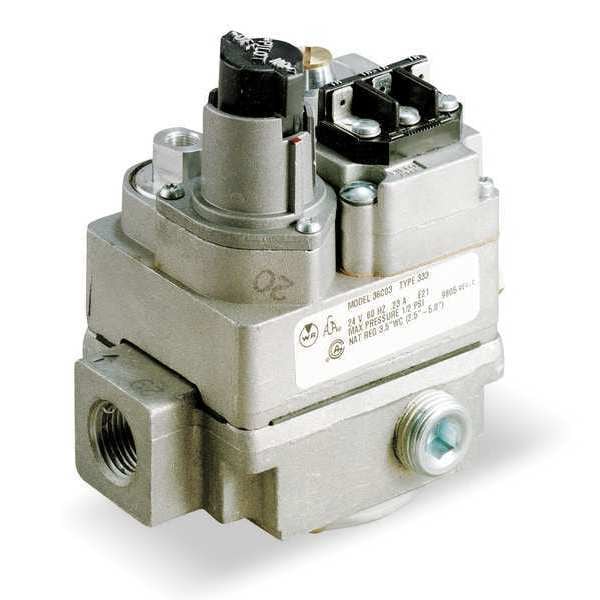

Gas Valve, NG/LP, Standing Pilot, 750 mV, 2.5 to 5.0 in wc, Fast Opening, 0.23 A, 1/2 in Inlet Size
| BtuH Capacity | 230,000 BtuH |
|---|---|
| Coil Volts | 750 mV |
| Gas Type | NG/LP |
| Ignition Type | Standing Pilot |
| Inlet Size | 1/2 in |
| Outlet Size | 3/4 in |
| Reducer Bushing Kit | 1/2 x 3/8 in and 3/4 x 1/2 in |
| Valve Type | Fast Opening |
| Amps AC | 0.23 A |
| Ambient Temp. Range | -40 to 175 deg F |
| Item | Gas Valve |
| LP Conversion Kit | Yes |
| Pressure Setting Range | 2.5 to 5.0 in wc |
| Flow Direction | Straight-Thru |
| Includes | 1/2 x 3/8 in and 3/4 x 1/2 in Reducer Bushings, ECO Terminals, Natural to LP Gas Conversion Kit |
| Side Taps | Yes |
| Inlet Pressure Tap | Yes |
| Port Connection Gender | Female |
| Manufacturer Series | 36C |
| Pilot Port Connection Size | 1/4 in |
| Current | 0.23 A |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Valve Design | Single |
| Sensing Type | Flame Sensor |
| Pressure Tap Connection Size | 1/8 in |
| Port Connection Type | NPT |
| Installation Orientation | Vertical |
| Pressure Tap Connection Type | NPT |
| Includes Pressure Regulator | Pressure Regulator Included |
| Pilot Type | Standing Pilot |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Port Connection Size | 1/2 in |
| Includes On/Off Switch | Off, On Switch Included, Pilot |
| Includes Conversion Kit | Conversion Kit Included |
| For Media | Liquid Propane, Natural Gas |
| Overall Depth | 2-7/8 in |
| Includes Side Taps | Side Taps Included |
| Includes Pressure Tap | Pressure Tap Inlet Included, Pressure Tap Outlet Included |
| Opening Characteristic | Fast Opening |
| Operating Temperature - Minimum | -40 deg F |
| Heating Capacity - Maximum | 230,000 BtuH |
| Pilot Port Connection Type | Compression |
| Reducer Bushings Included | 1/2 x 3/8 in, 3/4 x 1/2 in |
| Operating Temperature - Maximum | 175 deg F |
| Voltage | 0.75 V |
| Overall Length | 3-15/16 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
