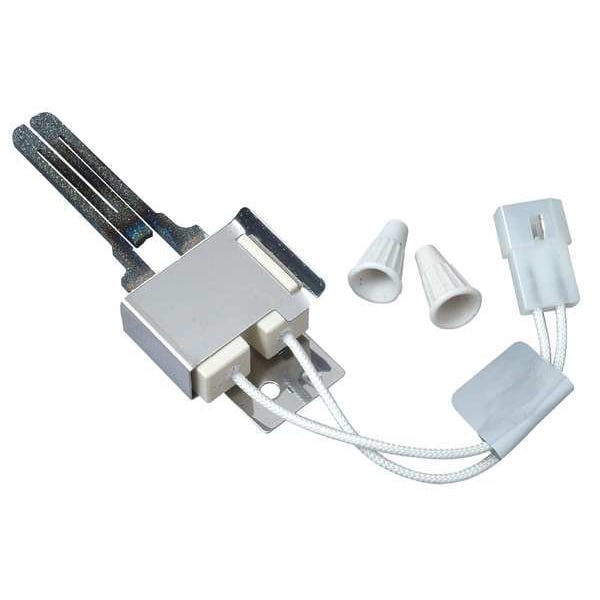

Hot Surface Igniter, LP/NG, 120V AC, 5 1/4 in L., Silicon Carbide
| Gas Type | LP, NG |
|---|---|
| Item | Hot Surface Igniter |
| Length (In.) | 5-1/4 |
| Tip Style | Flat |
| Type | Silicon Carbide |
| Voltage | 120V AC |
| Includes | Ceramic Wire Nuts, Strip Connections |
| For Use With | 15, 17 or 45 Second HSI Systems |
| Package Quantity | 1 |
| Temperature Range | 200 Degrees C |
| Special Information | Receptacle with .093 Male Pins |
| Product Type | Hot Surface Igniter |
| Standards | CSA Certified |
| Heating Element Material | Silicon Carbide |
| Overall Length | 5-1/4 in |
| OEM Replacement Part Number | 1009604, 1096048, 1380680, 271NM, 41-412, 767A-373, B1401009, B1401018S |
| Replacement Type | OEM |
| Compatible with Brand | Arco Aire, Comfort Maker, Goodman, Heil, Intercity, Norton, Robertshaw, Tempstar, White-Rodgers |
| Maximum Lead Wire Insulation Temperature | 392 deg F |
| Electrical Connection Type | Plug-In |
| Probe Length | 2-1/4 in |
| Lead Length | 5-1/4 in |
| Input Voltage | 120 V AC |
| For Fuel Type | Natural Gas, LP |
| Country of Origin (subject to change) | Mexico |
