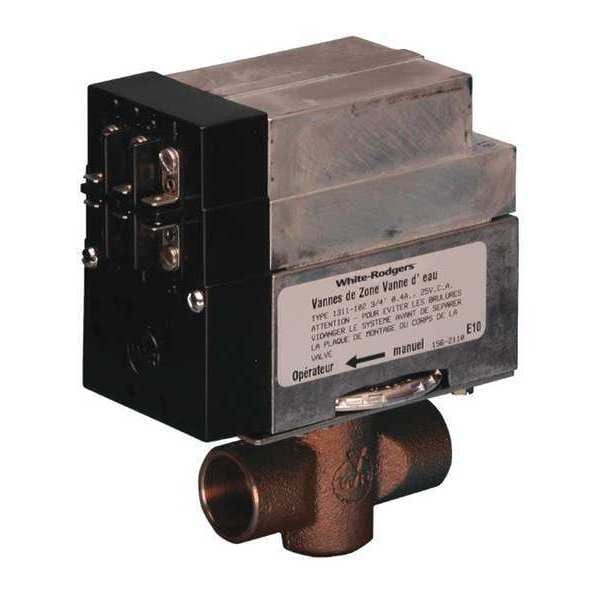

Hydronic Zone Valve, 2 Wire, 1-1/4" Tubing
| Item | Hydronic Zone Valve |
|---|---|
| Port Connection Size | 1 in |
| Port Connection Gender | Female |
| Application | General Purpose |
| Coefficient of Volume (Cv) | 42.2 |
| Overall Width | 4-5/8 in |
| Port Connection Type | Sweat |
| Valve Action | Normally Closed |
| Stem Material | Stainless Steel |
| Actuator Control Pressure - Maximum | Not Applicable |
| Overall Depth | 2-5/8 in |
| Gasket/Plug Material | Rubber |
| Bypass Port Coefficient of Volume (Cv) | 42.2 |
| Close-Off Pressure | 15 psi |
| Actuator Return Action | Not Applicable |
| Operating Temperature - Maximum | 240 deg F |
| Actuator Control Signal | On/Off |
| Overall Length | 5-5/8 in |
| Actuator Control Pressure - Minimum | Not Applicable |
| Body Material | Stainless Steel |
| Spring Action | Non-Spring Return |
| Allowable Pressure - Maximum | 50 psi |
| Actuator Type | Electric |
| Valve Type | Ball |
| Fluid Temperature - Maximum | 240 Degrees F |
| For Media | Water |
| Installation Orientation | Versatile |
| Fluid Temperature - Minimum | 40 Degrees F |
| Actuator Voltage | 24V AC |
| Body Pattern | Two-Way |
| Includes Actuator | Actuator Included |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
