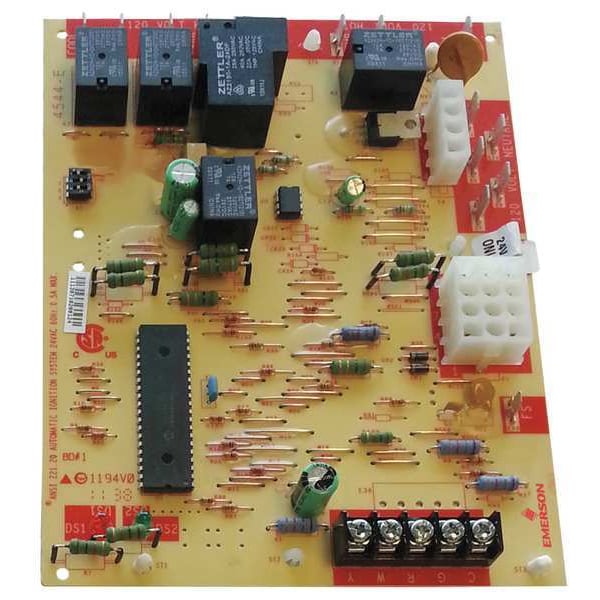

Integrated Hot Surface Control, OEM
| Item | Furnace Control Board |
|---|---|
| Replaces | Lennox Models 30W2501, 100925-01, 100925-02, 100925-03, 17W92, 17W9201, 23W51, 23W5101, 30W25, 30W2501, 69M08, 69M0801, 69M15, 69M1501, 50A66-122, 50A66-123, 50A66-743 |
| Input Voltage | 25V AC |
| Includes | ECMx Motor Control, PSC, Variable Speed |
| For Use With | 100925-02, 100925-03, 17W92, 17W9201, 23W51, 23W5101, 30W25, 30W2501 69M08, 50A66-122, 50A66-123, 50A66-743, 69M0801, 69M15, 69M1501, Mfr. No. 100925-01 |
| Type | OEM Replacement |
| Control Volts | 120 V |
| Igniter Voltage | 80V AC |
| Product Type | Furnace Control Board |
| Maximum Operating Temperature | 175 deg F |
| Twinning Compatibility | Not Twinning Compatible |
| Control Voltage | 120 V |
| OEM Replacement Part Number | 100925-01, 100925-02, 100925-03, 17W92, 17W9201, 23W51, 23W5101, 30W25, 30W2501, 50A66-122, 50A66-123, 69M08, 69M0801, 69M15, 69M1501 |
| Compatible Blower Motor Type | Permanent Split Capacitor |
| Items Controlled | Air Cleaners, Blowers, Gas Valves, Humidifiers, Ignitors, Inducers |
| Furnace Control Functions | Heat, Cool |
| Heat Blower Off Delay Setting | 60 sec, 90 sec, 120 sec, 180 sec |
| Board Type | Integrated |
| Replacement Type | OEM |
| Compatible Inducer Motor Type | Permanent Split Capacitor |
| Compatible with Brand | Lennox, White-Rodgers |
| Ignition Type | Hot Surface Igniter |
| Heat Blower On Delay Setting | 45 sec |
| Control Mounting Type | Standoff |
| Maximum Relative Humidity | 93 % |
| Terminal Designations | C, R, W, Y G |
| Number of Stages | 1 |
| Number of Speed Taps | 3 |
| Cool Blower On Delay Setting | 2 sec |
| Minimum Operating Temperature | -40 deg F |
| Connection Interface Type | Spade Terminal |
| Minimum Relative Humidity | 5 % |
| Cool Blower Off Delay Setting | 45 sec |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
