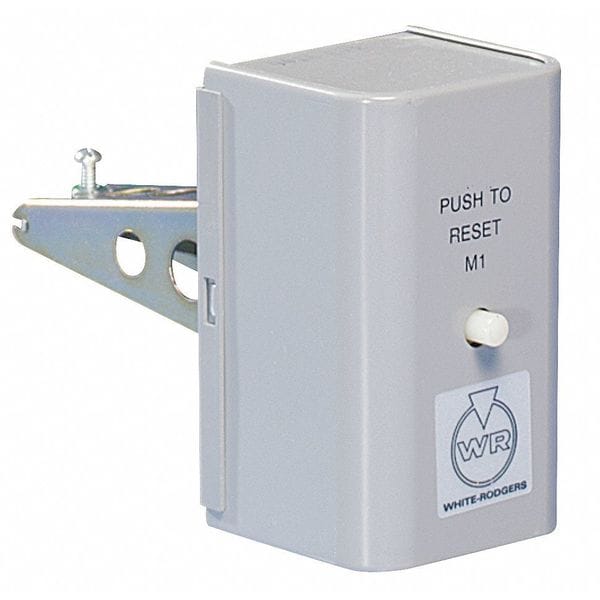

Line Voltage Mechanical Thermostat, Close on Rise, -30 Degrees to 90 Degrees F, SPST
| Switch Action | Close on Rise |
|---|---|
| Voltage | 120 to 240V AC |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Differential | 3.5 Degrees to 40 Degrees F Adjustable |
| Display Type | Analog |
| Thermostat Control Range | -30 to 90 deg F |
| Switch Type | SPST |
| Color | Gray |
| Width | 2-5/16 in |
| Height | 5-3/8 in |
| Number of Switches | 1 |
| Type | Remote Bulb Temperature Control |
| Width (In.) | 2-5/16 |
| Contact Rating Resistive @ 120V | 25 A |
| For Use With | Refrigeration Applications Where Remote Control is Desired |
| Inductive Amps @ 120V | 16 A |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Depth (In.) | 2-9/16 |
| Capillary Length | 60 in |
| Remote Sensing Bulb Included | Yes |
| Capillary Length (In.) | 60 |
| Control Range | -30 to 90 deg F |
| Locked Rotor Amps @ 240V | 22.2 A |
| Includes | Bulb Mounting Clip |
| Agency Compliance | Meets Article 547 of National Electrical Code |
| Height (In.) | 5-3/8 |
| Thermostat Voltage | 120 to 240 V AC |
| Thermostat Heating/Cooling | Cooling |
| Contact Rating Resistive @ 240V | 22 A |
| Thermostat Switch Type | SPST |
| Depth | 2-9/16 in |
| Full Load Amps @ 240VAC | 4.9 A |
| Application | Refrigeration |
| Sensing Bulb Length | 5-1/4 in |
| Item | Line Voltage Mechanical Thermostat |
| Enclosure Type | Dustproof NEMA 1 |
| Control Range (F) | -30 to 90 |
| Inductive Amps @ 240V | 8 A |
| Locked Rotor Amps @ 120V | 44.5 A |
| Thermostat Type | Indoor Single-Stage Controls |
| Standards | CSA Certified, UL Listed |
| Control Type | Concealed Dial |
| Full Load Amps @ 240V AC | 8 A |
| Changeover Type | Manual |
| Temperature Differential | 3.5 Degrees to 40 Degrees F |
| Switch Type/Action | SPST on Rise |
| Full Load Amps @ 120V AC | 16 A |
| Differential Type | Adjustable |
| Contact Rating | 120V AC, 240V AC |
| Maximum Control Temperature | 90 deg F |
| Number of Cooling Stages | 1 |
| Electrical Connection Type | Hardwired |
| Bulb Diameter | 3/8 in |
| Maximum Operating Temperature | 140 deg F |
| Capillary Length/Bulb Diameter | 5 ft Capillary, 5 1/4 in x 3/8 in Bulb |
| Stages | 1C |
| Overall Height | 5-3/8 in |
| Enclosure NEMA Rating | 1 |
| Enclosure Material | Steel |
| Temperature Control Range | -30 to 90 deg F |
| Overall Width | 2-3/8 in |
| Bulb Length | 5-1/4 in |
| Sensor Location | Remote |
| Temperature Scale | Fahrenheit, Celsius |
| Number of Poles | 1 |
| Compatible System Type | Solenoid Refrigerant Valve, Zoning Systems |
| Overall Depth | 2-5/8 in |
| Enclosure Color | Gray |
| Operating Temperature Range | -29 to 140 deg F |
| Minimum Operating Temperature | -29 deg F |
| Number of Heating Stages | 0 |
| Minimum Control Temperature | -30 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
