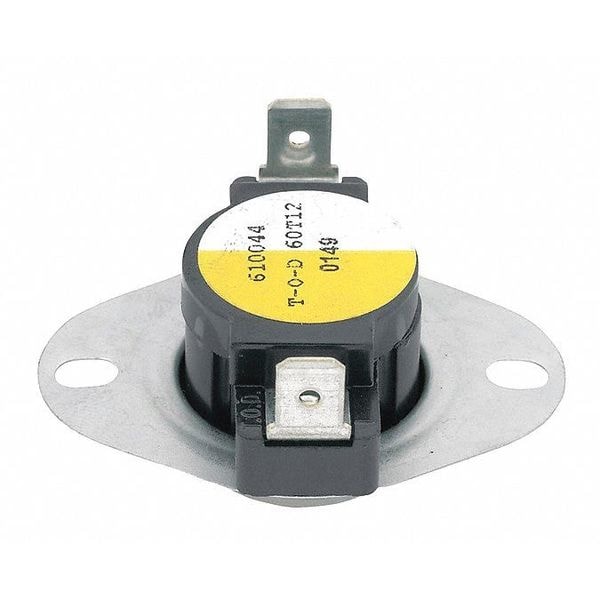

Snap Disc Fan Control, Close 110 deg. F
| Item | Temperature Fan Controller |
|---|---|
| Switch Action | Close |
| Resistive Amps @ 120V AC | 25 A |
| Standards | CSA Certified, UL Listed, VDE |
| Wire Connections | Quick Connect |
| Resistive Amps @ 240V AC | 25 A |
| Terminal Size | 1/4 in |
| Weight | 0.2 oz |
| Overall Width | 1-3/8 in |
| Overall Height | 3/8 in |
| Mounting | Surface Mount |
| Overall Depth | 1-1/4 in |
| Contact Form | SPST |
| Input Voltage | 120V AC |
| Mounting Hole Diameter | 3/4 in |
| Maximum Control Temperature | 350 deg F |
| Switch Opening Temperature | 90 deg F |
| Application | Fan Control |
| Contact Rating (AC) | 0.5 A, 30 A @ 240V AC, 10 A, 60 A @ 120V AC, 25 A @ 120V AC, 25 A @ 240V AC |
| Mounting Base Length | 1-1/4 in |
| Pilot Contact Rating | 125 VA |
| Switch Closing Temperature | 110 deg F |
| Product Type | Temperature Fan Controller |
| Mounting Base Width | 1-3/8 in |
| Reset Type | Automatic Reset |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
