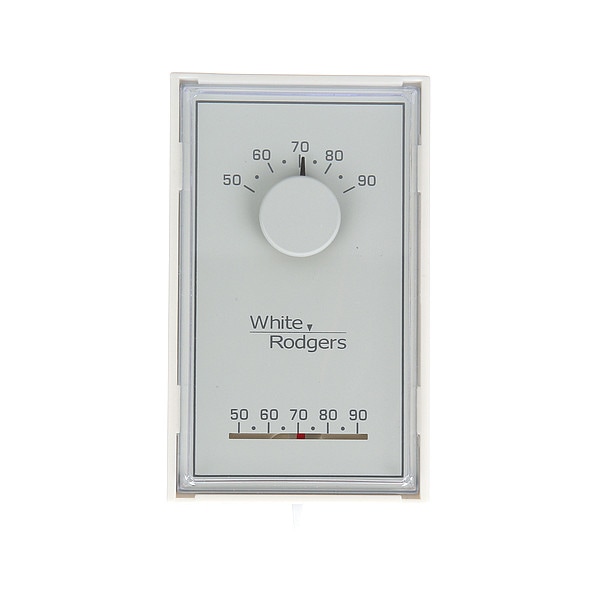

Standard Mechanical Thermostats, 1 H, 0 C, Hardwired, 24VAC
| Item | Standard Mechanical Thermostats |
|---|---|
| Voltage | 24VAC |
| Stages Heat | 1 |
| Mounting Type | Vertical |
| Color | White |
| Control Range | 50 to 90 deg F |
| System Switching | No |
| Stages Cool | 0 |
| Height | 4-1/2 in |
| Width | 2-3/4 in |
| Dual Transformer Compatible | No |
| Power Method | Hardwired |
| 750mV Compatible | Yes |
| Terminal Designations | R, W |
| Features | Mercury Free |
| Automatic Changeover | No |
| Mounting | Vertical |
| Depth | 1-1/2 in |
| For Use With | Millivolt |
| Fan Switching | No |
| Includes | Heat Only Back Plate |
| Temporary Temperature Hold | No |
| Standards | NEC Class II |
| Dehumidification Control | No |
| Temporary Program Override | No |
| Battery Backup | No |
| Humidification Control | No |
| Temperature Limiting | No |
| Display Type | Analog |
| Key Pad Lockout | No |
| Stages | 1H Conventional |
| Control Type | Slide Switch |
| Type | Mechanical Nonprogrammable Conventional Systems |
| Fan Settings | No Fan Setting |
| Application | Heat Only |
| System/Fan Settings | No Fan Setting, On |
| System Settings | On |
| Number of Heating Stages - Conventional System | 1 |
| Millivolt Compatible | Yes |
| Number of Cooling Stages - Conventional System | 0 |
| Minimum Control Temperature | 50 deg F |
| Minimum Operating Humidity | 0 % |
| Includes Positive Off | No |
| Mounting Direction/Shape | Vertical |
| Mounting Direction | Vertical |
| Overall Height | 4-1/2 in |
| Overall Width | 2-3/4 in |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces |
| Maximum Control Temperature | 90 deg F |
| Mercury Free | Yes |
| Differential Type | Adjustable |
| Operating Humidity Range | 0% to 90% |
| Maximum Operating Humidity | 90 % |
| Shape | Rectangle |
| Temperature Differential | 1 Degrees F Heating, 1.5 Degrees F Cooling |
| Number of Heating Stages - Heat Pump System | 0 |
| Differential Cool | 1.5 deg F |
| Temperature Readout | Yes |
| Contact Type | Snap Action |
| Temperature Scale | Fahrenheit |
| Thermostat Type | Low Voltage |
| Temperature Control Range | 50 to 90 deg F |
| Frequency | 50 Hz, 60 Hz |
| Heat Pump Compatible | Heat Pump without Auxiliary |
| Housing Color | White |
| Differential Heat | 1 deg F |
| Electrical Connection Type | Hardwired |
| Number of Cooling Stages - Heat Pump System | 0 |
| Overall Depth | 1-1/2 in |
| Digit Size | Standard |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
