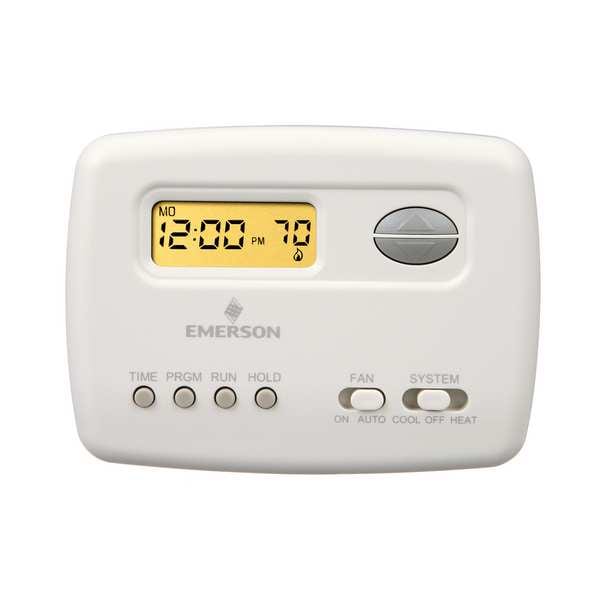

Thermostat, 5-2 Programs, 1 H, 1 C, Battery, 24VAC
| Item | Thermostat |
|---|---|
| Voltage | 24VAC |
| Stages Heat | 1 |
| Mounting Type | Horizontal |
| Color | White |
| Control Range | 45 to 99 deg F |
| System Switching | Heat-Cool-Off |
| Stages Cool | 1 |
| Height | 3-1/4 in |
| Width | 5-1/8 in |
| Dual Transformer Compatible | Yes |
| Power Method | Battery |
| 750mV Compatible | Yes |
| Programs per Week | 5-2 |
| Features | Covers Wall Marks Left by Most Mechanical Thermostats without the Need for an Extra Wall Plate |
| Programmable Fan | No |
| Battery Backup | Yes |
| Terminal Designations | RH, RC, Y, W, G, O, B |
| Key Pad Lockout | No |
| Humidification Control | No |
| Batteries Included | Yes |
| Low Battery Indicator | Yes |
| Display Size | 1.2 sq in |
| Footnotes | 3, 4 |
| Temp. Settings per Day | 4 |
| Fan Switching | Auto-on |
| Includes | 2 AAA batteries |
| Remote Sensing Capability | No |
| WiFi Capability | No |
| Display Type | LCD, Backlit |
| Depth | 1-1/8 in |
| Temperature Limiting | No |
| Temporary Program Override | Yes |
| Mounting | Horizontal |
| Dehumidification Control | No |
| Temporary Temperature Hold | Yes |
| Stages | 1H/1C Conventional, 1H/1C Heat Pump |
| Control Type | Push Button |
| Type | C, HP, Digital Programmable Single Stage H |
| Overall Width | 5-1/8 in |
| Number of Cooling Stages - Heat Pump System | 1 |
| Differential Cool | 1.2 deg F |
| Minimum Operating Humidity | 0 % |
| Number of Cooling Stages - Conventional System | 1 |
| Housing Color | White |
| Digit Size | Standard |
| Includes Batteries | Yes |
| Temperature Readout | Yes |
| Maximum Operating Humidity | 90 % |
| Maximum Operating Temperature | 105 deg F |
| Temperature Differential | 0.6 Degrees F, 1.2 Degrees F |
| Overall Depth | 1-1/8 in |
| Backlit Screen | Yes |
| Application | Cool, Heat |
| Includes Positive Off | Yes |
| Frequency | 50 Hz, 60 Hz |
| Electrical Connection Type | Hardwired |
| Operating Humidity Range | 0% to 90% RH |
| Shape | Rectangle |
| Temperature Scale | Fahrenheit, Celsius |
| Backlit Type | Touch Activated |
| Fan Settings | Auto-On |
| Mounting Direction/Shape | Horizontal |
| Minimum Control Temperature | 45 deg F |
| System Settings | Cool-Heat-Off |
| Operating Temperature Range | 32 to 105 deg F |
| Smart Connectivity | No Connectivity |
| Filter Change Reminder | No |
| Temperature Control Range | 45 to 99 deg F |
| Number of Heating Stages - Heat Pump System | 1 |
| Programming Capability | 5-2 |
| Millivolt Compatible | Yes |
| Maximum Control Temperature | 99 deg F |
| Differential Heat | 0.5 deg F, 1.9 deg F |
| Minimum Operating Temperature | 32 deg F |
| Battery Type | AAA Batteries |
| Application/Stages | Heat and Cool; 1H/1C Conventional, 1H/1C Heat Pump |
| Temperature settings per day | 4 |
| Mounting Direction | Horizontal |
| Contact Rating | 20 to 30V AC |
| Thermostat Type | Low Voltage |
| Differential Type | Adjustable |
| Overall Height | 3-13/16 in |
| Changeover Type | Manual |
| Number of Zones | 1 |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Hydronic Systems, Heat Pump without Aux, Millivolt |
| System/Fan Settings | Auto-On, Cool-Heat-Off |
| Number of Heating Stages - Conventional System | 1 |
| Country of Origin (subject to change) | Viet Nam |
| Package Quantity | 1 |
