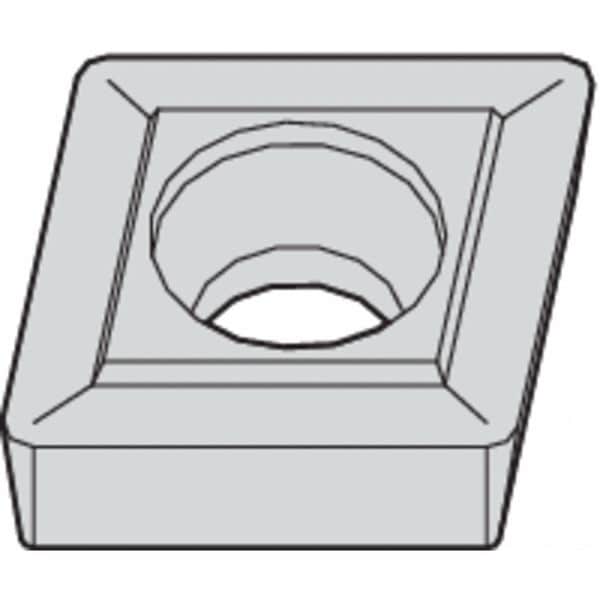

Diamond Turning Insert, Diamond, 2, CCMT, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCMT |
| Inscribed Circle | 2 |
| Insert Size | 2,151 |
| Chip-Breaker | Yes |
| Grade | TTR |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | CCMT060204 |
| Cast Iron (K) Compatibility | No |
| No. of Edges | 2 |
| Cutting Direction | Neutral |
| Mounting Hole Dia. | 0.11 in |
| Workpiece Compatibility | Steel (P) |
| Steel (P) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Super Alloy (S) Compatibility | No |
| Mounting Style | Screw |
| Hardened (H) Compatibility | No |
| Stainless (M) Compatibility | No |
| Nose Radius | 0.016 in |
| Relief Angle | 7 Degrees |
| Coating | Uncoated |
| Insert Thickness | 0.0938 in |
| Non Ferrous (N) Compatibility | No |
| ANSI Number | CCMT2151 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Shape | Rhombic |
| Material - Machining | Carbide |
| Clearance Angle | 7 deg |
| Thickness | 1.5 |
| Number of Cutting Edges | 2 |
| ANSI Code | CCMT2151 |
| Measurement System | Fractional Inch |
| Chip-Breaker Style | On One Side |
| Manufacturer Grade | TTR |
| Cutting Application | Turning |
| Finish - Machining | Bright |
| Cutting Edge Length | 6.45 mm |
| Primary Material Application | Titanium, Brass, Bronze, Copper, Magnesium, Nickel, Cast Iron, Aluminum, Hardened Steel |
| Included Angle | 80 Degrees |
| Primary Material Application ISO Code | S, K, N, H |
| Material | Carbide |
| Style | CCMT |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
