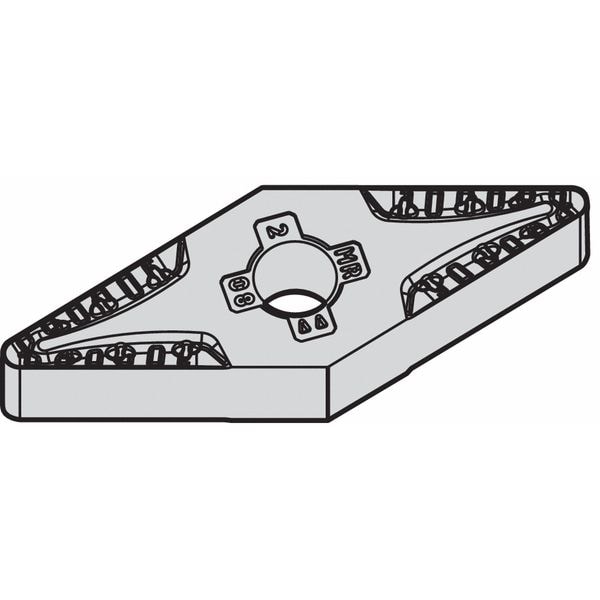

Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | VNMG |
| Inscribed Circle | 3 |
| Insert Size | 332 |
| Chip-Breaker | Yes |
| Grade | WP15CT |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Negative |
| ISO Number | VNMG160408MR |
| Coating | TiN |
| Mounting Hole Dia. | 0.15 in |
| Non Ferrous (N) Compatibility | No |
| Mounting Style | Clamp |
| Insert Thickness | 3/16 in |
| Super Alloy (S) Compatibility | No |
| No. of Edges | 4 |
| For Use With | Toolholders, Boring Bars |
| Cutting Direction | Neutral |
| Stainless (M) Compatibility | No |
| ANSI Number | VNMG332MR |
| Cast Iron (K) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Hardened (H) Compatibility | No |
| Nose Radius | 0.031 in |
| Relief Angle | 0 Degrees |
| Clearance Angle | 0 deg |
| Included Angle | 35 Degrees |
| Thickness | 3 |
| Material - Machining | Carbide |
| Finish - Machining | TiN |
| Shape | Rhombic |
| Insert Holding Type | Straight Hole |
| Chip-Breaker Style | On Two Sides |
| Secondary Material Application | Cast Iron |
| Number of Cutting Edges | 4 |
| Manufacturer Grade | WP15CT |
| Primary Material Application ISO Code | P |
| Primary Material Application | Steel |
| Cutting Application | Turning |
| Secondary Material Application ISO Code | K |
| Measurement System | Fractional Inch |
| Cutting Edge Length | 16 mm |
| ANSI Code | VNMG332MR |
| Chip-Breaker Code | MR |
| Material | Carbide |
| Style | VNMG |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
