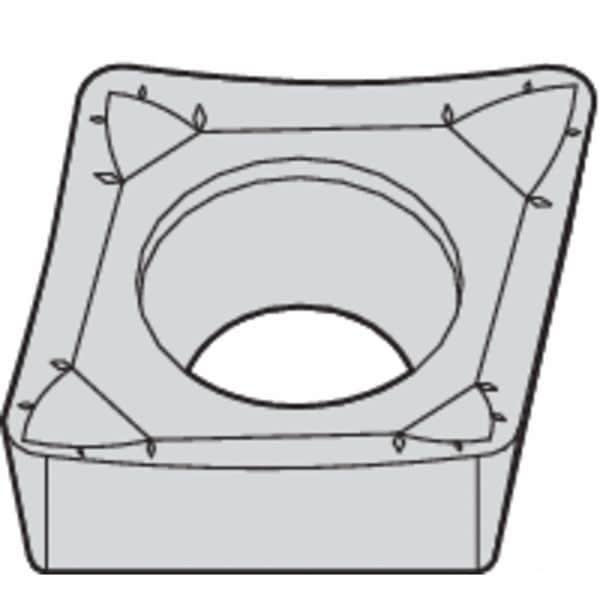

Diamond Turning Insert, Diamond, 4, CCGT, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCGT |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | HCK10 |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | CCGT120408AL3 |
| Cast Iron (K) Compatibility | No |
| Relief Angle | 7 Degrees |
| Mounting Style | Screw |
| ANSI Number | CCGT432AL3 |
| Workpiece Compatibility | Nonferrous (N) |
| No. of Edges | 2 |
| Coating | TiAlN |
| Insert Thickness | 3/16 in |
| Steel (P) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| Nose Radius | 0.031 in |
| Hardened (H) Compatibility | No |
| Cutting Direction | Neutral |
| Mounting Hole Dia. | 0.217 in |
| Non Ferrous (N) Compatibility | Yes |
| Stainless (M) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Cutting Edge Length | 12.9 mm |
| Cutting Application | Turning |
| Finish - Machining | TiAlN |
| Material - Machining | Carbide |
| Chip-Breaker Style | On One Side |
| Chip-Breaker Code | AL3 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Shape | Rhombic |
| ANSI Code | CCGT432AL3 |
| Primary Material Application ISO Code | N |
| Number of Cutting Edges | 2 |
| Primary Material Application | Brass, Bronze, Copper, Magnesium, Aluminum |
| Measurement System | Fractional Inch |
| Clearance Angle | 7 deg |
| Manufacturer Grade | HCK10 |
| Included Angle | 80 Degrees |
| Thickness | 3 |
| Material | Carbide |
| Style | CCGT |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
