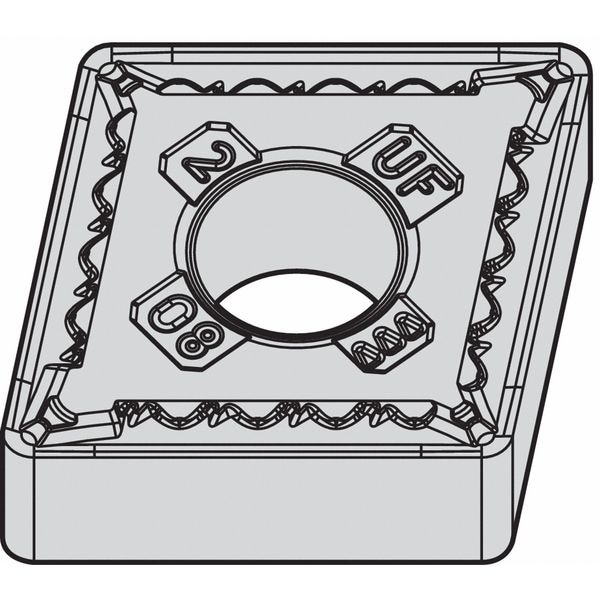

Diamond Turning Insert, Diamond, 4, CNMG, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 4 |
| Insert Size | 431 |
| Chip-Breaker | Yes |
| Grade | WS10PT |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Negative |
| ISO Number | CNMG120404UF |
| Non Ferrous (N) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Super Alloy (S) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Nose Radius | 0.016 in |
| Relief Angle | 0 Degrees |
| Stainless (M) Compatibility | Yes |
| Insert Thickness | 3/16 in |
| ANSI Number | CNMG431UF |
| Cast Iron (K) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Cutting Direction | Neutral |
| No. of Edges | 8 |
| Coating | AlTiSiN |
| Mounting Style | Clamp |
| Workpiece Compatibility | Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| Mounting Hole Dia. | 0.203 in |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Primary Material Application ISO Code | M, S |
| Insert Holding Type | Straight Hole |
| Included Angle | 80 Degrees |
| Chip-Breaker Style | On Two Sides |
| Finish - Machining | AlTiSiN |
| Cutting Application | Turning |
| Manufacturer Grade | WS10PT |
| Measurement System | Fractional Inch |
| Cutting Edge Length | 12.9 mm |
| Secondary Material Application ISO Code | K, P, N |
| Thickness | 3 |
| ANSI Code | CNMG431UF |
| Chip-Breaker Code | UF |
| Number of Cutting Edges | 8 |
| Clearance Angle | 0 deg |
| Shape | Rhombic |
| Material - Machining | Carbide |
| Primary Material Application | Titanium, Nickel, Stainless Steel |
| Material | Carbide |
| Style | CNMG |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
