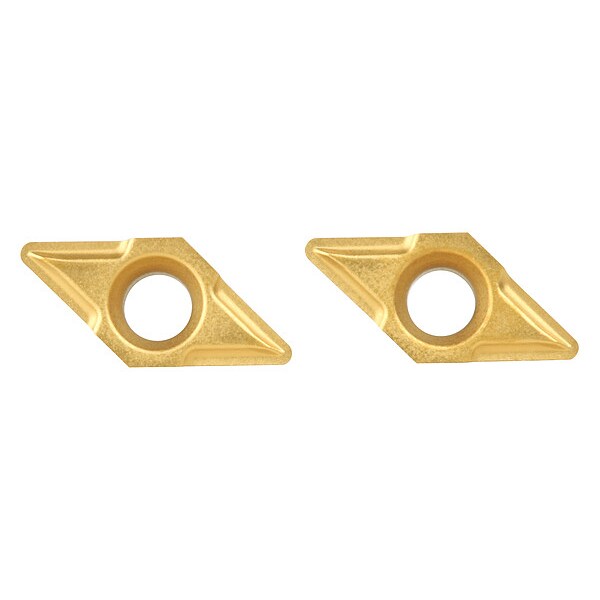

Diamond Turning Insert, Diamond, 4.07mm, GPHT, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | GPHT |
| Inscribed Circle | 4.07 mm |
| Insert Size | 0.1605" |
| Chip-Breaker | Yes |
| Grade | CG5 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| ISO Number | GPHT050104 |
| Mounting Style | Taper Screw |
| Coating | Bright |
| Mounting Hole Dia. | 0.084 in |
| Insert Thickness | 0.062 in |
| Style | GPHT |
| Cutting Direction | Neutral |
| Finish - Machining | TiN |
| ANSI Code | GPHT1211 |
| Clearance Angle | 11 deg |
| Measurement System | Metric |
| Shape | Rhombic |
| Cutting Application | Turning |
| Secondary Material Application ISO Code | K |
| Number of Cutting Edges | 2 |
| Thickness | 1.57 mm |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Included Angle | 45 Degrees |
| Manufacturer Grade | CG5 |
| Primary Material Application | Titanium, Brass, Bronze, Copper, Magnesium, Nickel, Aluminum, Stainless Steel, Steel |
| Chip-Breaker Style | On One Side |
| Cutting Edge Length | 5.76 mm |
| Primary Material Application ISO Code | P, M, S, N |
| Material - Machining | Carbide |
| Secondary Material Application | Cast Iron |
| Material | Carbide |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
