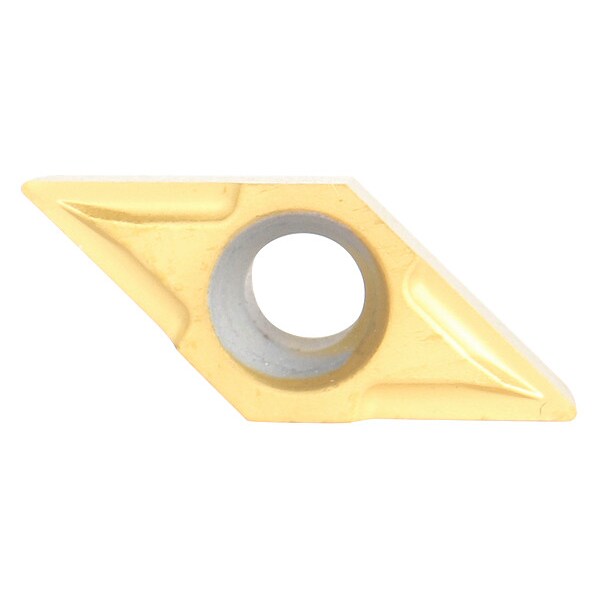

Diamond Turning Insert, Diamond, 4.83mm, GCHT, 0.18mm, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | GCHT |
| Inscribed Circle | 4.83 mm |
| Insert Size | 0.1902" |
| Chip-Breaker | Yes |
| Grade | CG5 |
| Corner Radius | 0.18 mm |
| Insert Material | Carbide |
| ISO Number | GCHT060202 |
| Insert Thickness | 0.093 in |
| Coating | TiN |
| Cutting Direction | Neutral |
| Mounting Style | Taper Screw |
| Mounting Hole Dia. | 0.094 in |
| Style | GCHT |
| Clearance Angle | 7 deg |
| Secondary Material Application | Cast Iron |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | P, M, S, N |
| Shape | Rhombic |
| Secondary Material Application ISO Code | K |
| Finish - Machining | TiN |
| Primary Material Application | Titanium, Brass, Bronze, Copper, Magnesium, Nickel, Aluminum, Stainless Steel, Steel |
| Manufacturer Grade | CG5 |
| Included Angle | 45 Degrees |
| Chip-Breaker Style | On One Side |
| Number of Cutting Edges | 2 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Thickness | 1.5 |
| Cutting Application | Turning |
| Measurement System | Metric |
| ANSI Code | GCHT151505 |
| Cutting Edge Length | 6.83 mm |
| Material | Carbide |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
