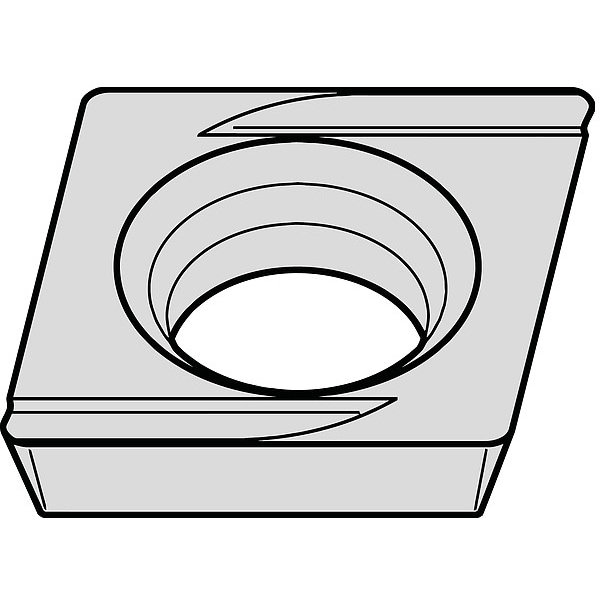

Diamond Turning Insert, Diamond, 5/32 in, CDHH, 0.18mm, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CDHH |
| Inscribed Circle | 5/32 in |
| Insert Size | 0.1562" |
| Chip-Breaker | No |
| Grade | CM1 |
| Corner Radius | 0.18 mm |
| Insert Material | Carbide |
| ISO Number | CDHHS4T002R |
| Mounting Style | Taper Screw |
| Style | CDHH |
| Cutting Direction | Right Hand |
| Mounting Hole Dia. | 0.084 in |
| Insert Thickness | 0.04 in |
| Coating | TiN |
| Secondary Material Application ISO Code | K |
| Finish - Machining | Bright |
| ANSI Code | CDHH120605R |
| Included Angle | 80 Degrees |
| Cutting Edge Length | 4.03 mm |
| Insert Holding Type | 70 Degrees to Countersink Hole |
| Cutting Application | Turning |
| Manufacturer Grade | CM1 |
| Thickness | 2.5 |
| Number of Cutting Edges | 2 |
| Material - Machining | Carbide |
| Primary Material Application | Titanium, Brass, Bronze, Copper, Magnesium, Nickel, Aluminum, Stainless Steel, Steel |
| Measurement System | Metric |
| Primary Material Application ISO Code | P, M, S, N |
| Clearance Angle | 15 deg |
| Shape | Rhombic |
| Secondary Material Application | Cast Iron |
| Material | Carbide |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
