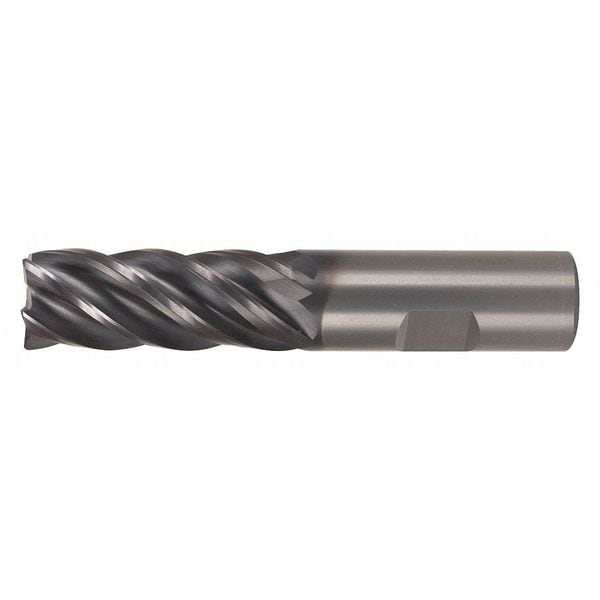

End Mill, 0.2500 in. Milling Dia., 5V0S
| Measurement System | Fractional Inch |
|---|---|
| Overall Length | 2 1/2 in |
| Milling Diameter | 1/4 in |
| Number of Flutes | 5 |
| End Mill Style | Corner Radius |
| Finish | AlTiN |
| Length of Cut | 3/4 in |
| End Mill Cutting Type | Non-Center Cutting |
| Corner Radius | 0.015 in |
| List Number | 5V0S |
| Grade | ALTIN-MT |
| Neck Length | Not Applicable |
| End Mill Application | Finishing, Roughing |
| Steel (P) Compatibility | Yes |
| Helix Angle | 38 deg |
| End Mill Material | Carbide |
| Milling Dia. | 1/4 in |
| Non Ferrous (N) Compatibility | No |
| Hardened (H) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Shank Dia. | 1/4 in |
| Shank Type | Straight |
| Dimension Type | Decimal inch |
| Single End/Double End | Single End |
| Item | Corner Radius End Mill |
| Cutting Direction | Right Hand |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Material - Machining | Carbide |
| Finish - Machining | AlTiN |
| Material Grade - Machining | AlTiN-MT |
| Drilling Tool Configuration | Individual |
| Shank Type - Machining | Straight |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application ISO Code | P, M, K |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
