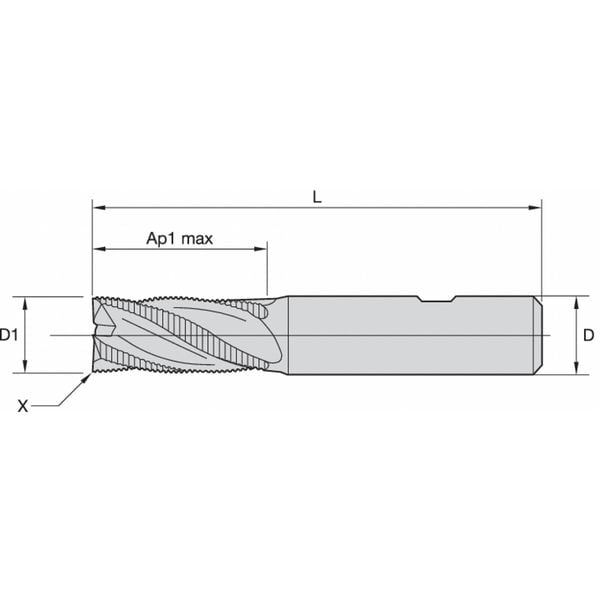

End Mill, AlTiN, 0.5000 in Millng Dia, 4S0R
| Item | Corner Chamfer End Mill |
|---|---|
| Number of Flutes | 4 |
| Overall Length | 3 in |
| Shank Dia. | 1/2 in |
| Length of Cut | 1 in |
| End Mill Style | Corner Chamfer |
| Single End/Double End | Single End |
| Dimension Type | Decimal inch |
| Super Alloy (S) Compatibility | Yes |
| Shank Type | Weldon |
| End Mill Material | Carbide |
| End Mill Cutting Type | Center Cutting |
| Stainless (M) Compatibility | Yes |
| Finish | AlTiN |
| Helix Angle | 20 deg |
| Milling Dia. | 1/2 in |
| Grade | WP15PE |
| End Mill Application | Roughing |
| Pitch | Fine |
| Cast Iron (K) Compatibility | Yes |
| Milling Diameter | 1/2 in |
| List Number | 4S0R |
| Cutting Direction | Right Hand |
| Steel (P) Compatibility | Yes |
| Hardened (H) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Neck Length | Not Applicable |
| Chamfer Width | 0.02 in |
| Material - Machining | Carbide |
| Finish - Machining | AlTiN |
| Measurement System | Fractional Inch |
| Material Grade - Machining | WP15PE |
| Shank Type - Machining | Weldon Flat |
| Drilling Tool Configuration | Individual |
| Primary Material Application ISO Code | P, K, H |
| Primary Material Application | Cast Iron, Hardened Steel, Steel |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
