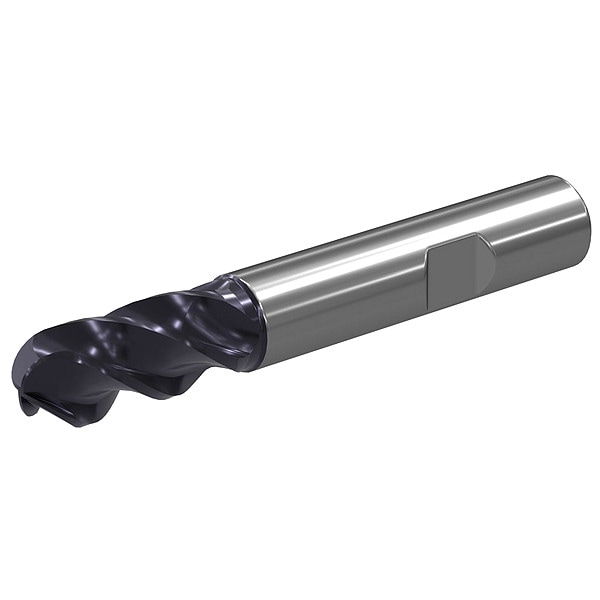

End Mill, Carbide, 92.00 mm L
| Number of Flutes | 4 |
|---|---|
| Length of Cut | 32 mm |
| Single End/Double End | Not Applicable |
| End Mill Cutting Type | Center Cutting |
| Shank Dia. | 16 mm |
| Helix Angle | 38 deg |
| Milling Dia. | 16 mm |
| Neck Dia. | 15.4 mm |
| End Mill Application | 3D Profiling, Ball Nose Slotting, Blank Ramping, Helical Milling, Shoulder Milling, Square End Side Milling |
| Neck Length | Not Applicable |
| Chip-Breaker | No |
| Item | End Mill |
| Overall Length | 92 mm |
| List Number | WCE4 |
| End Mill Style | Ball Nose |
| Series | W4NB |
| Cutting Direction | Right Hand |
| Secondary Material Application | Hardened Material, High-Temperature Alloy |
| Shank Type - Machining | Weldon Flat |
| Drilling Tool Configuration | Individual |
| Measurement System | Metric |
| Finish - Machining | TiAlN |
| Secondary Material Application ISO Code | H, S |
| Material Applications | Cast Iron, High-Temperature Alloy, Stainless Steel, Steel, Hardened Material |
| Primary Material Application ISO Code | P, K, M |
| Material - Machining | Carbide |
| Spiral Direction | Right Hand |
| Finish Coating Thickness | Not Applicable |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Material Grade - Machining | WU20PE |
| Package Quantity | 1 |
