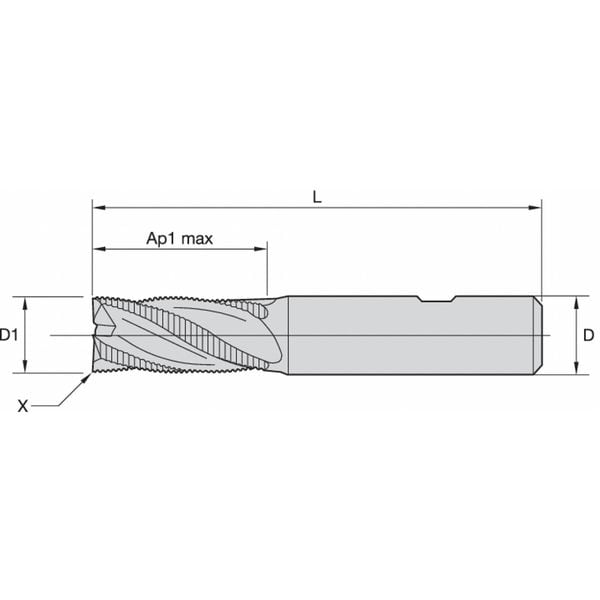

End Mill, TiCN, 0.7500 in Milling Dia, 6205
| Item | Corner Chamfer End Mill |
|---|---|
| Number of Flutes | 4 |
| Overall Length | 6-1/4 in |
| Shank Dia. | 3/4 in |
| Length of Cut | 4 in |
| End Mill Style | Corner Chamfer |
| Single End/Double End | Single End |
| End Mill Application | Roughing |
| Finish | Ticn |
| End Mill Cutting Type | Non-Center Cutting |
| Neck Length | 0 in |
| Milling Dia. | 3/4 in |
| Non Ferrous (N) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| End Mill Material | Cobalt |
| Dimension Type | Fractional Inch |
| Grade | 0 |
| Helix Angle | 30 deg |
| Pitch | Fine |
| Hardened (H) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| List Number | 6205 |
| Shank Type | Weldon |
| Cutting Direction | Right Hand |
| Milling Diameter | 3/4 in |
| Stainless (M) Compatibility | Yes |
| Finish - Machining | TiCN |
| Material - Machining | Cobalt |
| Shank Type - Machining | Weldon Flat |
| Measurement System | Fractional Inch |
| Drilling Tool Configuration | Individual |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
