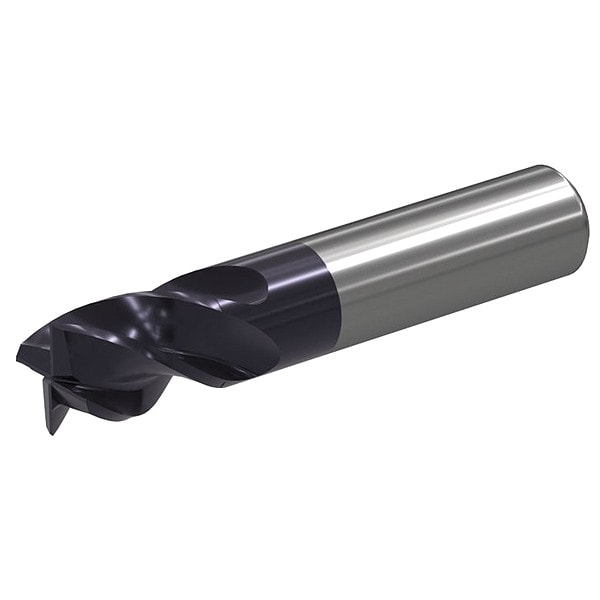

End Mill, W411 Series, 2.500 in L
| Item | End Mill |
|---|---|
| Number of Flutes | 4 |
| Overall Length | 2-1/2 in |
| Shank Dia. | 3/8 in |
| Length of Cut | 7/8 in |
| End Mill Style | Sharp Edge |
| Single End/Double End | Not Applicable |
| Series | W411 |
| Shank Length | 34.9 mm |
| Milling Dia. | 3/8 in |
| Helix Angle | 39 deg |
| Cutting Direction | Right Hand |
| List Number | WCE4 |
| End Mill Application | Blank Ramping, Helical Milling, Side Milling, Square End Shoulder Milling, Square End Slotting |
| End Mill Cutting Type | Center Cutting |
| Spiral Direction | Right Hand |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Secondary Material Application | Hardened Material, High-Temperature Alloy |
| Material Grade - Machining | WU20PE |
| Flute Type | Spiral |
| Shank Type - Machining | Straight |
| Material - Machining | Carbide |
| Max. Helix Angle | 39 Degrees |
| Primary Material Application ISO Code | P, M, K |
| Coolant Fed | Non-Coolant Through |
| Finish - Machining | TiAlN |
| Drilling Tool Configuration | Individual |
| Min. Helix Angle | 37 Degrees |
| Material Applications | Cast Iron, High-Temperature Alloy, Stainless Steel, Steel, Hardened Material |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Secondary Material Application ISO Code | S, H |
| Measurement System | Decimal Inch |
| Package Quantity | 1 |
