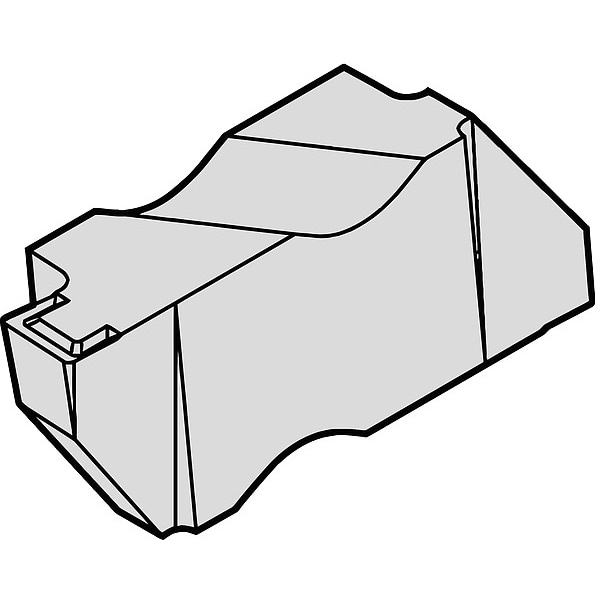

Grooving/Parting Insert, NG-K, Carbide
| Item | Parting and Grooving Insert |
|---|---|
| Style | NG-K |
| Insert Seat Size | 3 |
| Width | 0.196 in |
| Chip-Breaker | Yes |
| Grade | TN6010 |
| Cutting Direction | Right Hand |
| Corner Radius | 0.025 in |
| Lead Angle | 11 deg |
| Insert Style | NG-K |
| Rake | 10 deg |
| Coating | ALOX-SN |
| Application | Grooving |
| No. of Edges | 2 |
| Insert Size | 3 |
| Insert Material | Carbide |
| Mounting Style | Notch |
| ISO Number | NG3189RK |
| Chip-Breaker Style | Double Sided |
| Secondary Material Application ISO Code | H |
| Material - Machining | Carbide |
| Cutting Application | Grooving |
| Max. Grooving Width | 0.189 in |
| ANSI Code | NG3189RK |
| Depth of Cut | 0.15 in |
| Measurement System | Fractional Inch |
| Clearance Angle | 11 deg |
| Secondary Material Application | Hardened Steel |
| Manufacturer Grade | TN6010 |
| Hole Type | No Hole |
| Primary Material Application | Titanium, Nickel, Brass, Bronze, Copper, Magnesium, Cast Iron, Aluminum, Stainless Steel, Steel |
| Chip-Breaker Code | K |
| Thickness | 0.344 in |
| Primary Material Application ISO Code | S, M, P, N, K |
| Coating Process | PVD |
| Number of Cutting Edges | 2 |
| Seat Size | 3 |
| Package Quantity | 1 |
