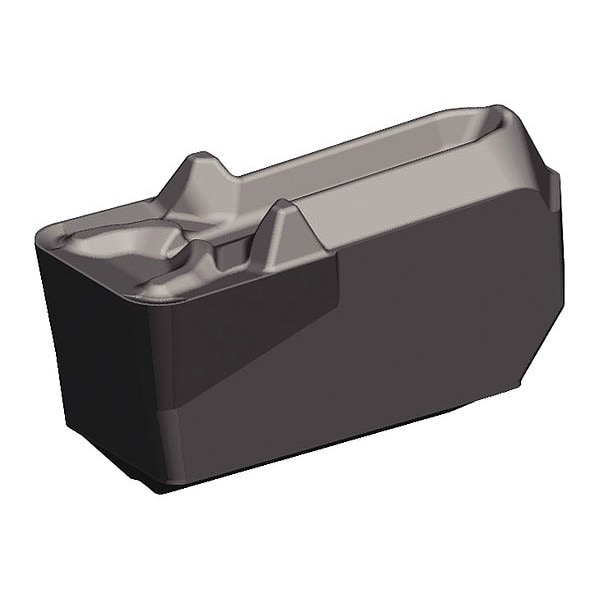

Grooving/Parting Insert, WG-U-PN, Carbide
| Item | Parting and Grooving Insert |
|---|---|
| Style | Precision Molded |
| Insert Seat Size | 8 |
| Width | 0.283 in |
| Chip-Breaker | Yes |
| Grade | WU25PT |
| Cutting Direction | Neutral |
| Mounting Style | Convex Prismatic Cross Section |
| No. of Edges | 1 |
| Insert Style | WG-U-PN |
| Corner Radius | 0.031 in |
| Insert Size | 8 |
| ISO Number | WG0812M08U08PN |
| Lead Angle | 10.5 deg |
| Rake | Negative |
| Application | Grooving |
| Coating | AlTiN |
| Insert Material | Carbide |
| Overall Length | 0.687 in |
| Reference Length | 0.687 in |
| Finish - Machining | AlTiN |
| Primary Material Application ISO Code | S |
| Chip-Breaker Style | On One Side |
| Chip-Breaker Code | PN |
| Coating Process | PVD |
| Thickness | 0.252 in |
| Depth of Cut | 0.151 in |
| Max. Grooving Width | 0.3199 in |
| Seat Size | 8 |
| Clearance Angle | 10.5 deg |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 1 |
| Material - Machining | Carbide |
| ANSI Code | WG0812M08U08PN |
| Primary Material Application | Titanium, Nickel |
| Manufacturer Grade | WU25PT |
| Cutting Application | Grooving |
| Hole Type | No Hole |
| Package Quantity | 1 |
