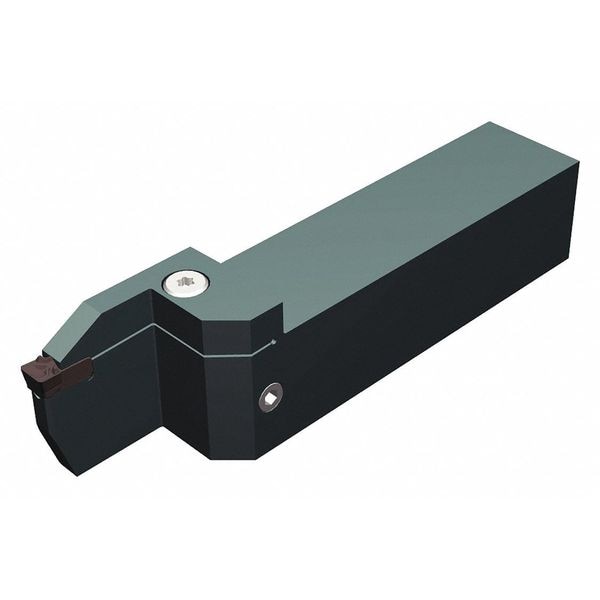

Grooving/Parting Toolholder, WGC, RH
| Item | Indexable Grooving and Parting Toolholder |
|---|---|
| Shank Length | 105.4 mm |
| Material | High Speed Steel |
| Clamp Screw | T30 |
| Clamp | 3.1500" |
| Overall Length | 6 in |
| Shank Shape | Square |
| Rake | 3 Degrees Axial |
| Cutting Direction | Right Hand |
| Series | WGC |
| ISO Number | WGCSMR160326C |
| ANSI Code | WGCSMR160326C |
| Features | Straight Clearance for Unlimited Workpiece Diameters;Through-the-Pocket Coolant Capable |
| Cutting Application | Chamfering, Cut-Off, Face Grooving, Facing, Grooving, Profiling, Turning |
| Toolholder Style | WGC |
| Max. Grooving Width | 3 mm |
| Shank Height | 1 in |
| Coolant Fed | Coolant Through |
| Shank Width | 1 in |
| Depth of Cut | 26 mm |
| Measurement System | Decimal Inch |
| Lead Angle | 90 Degrees |
| Package Quantity | 1 |
