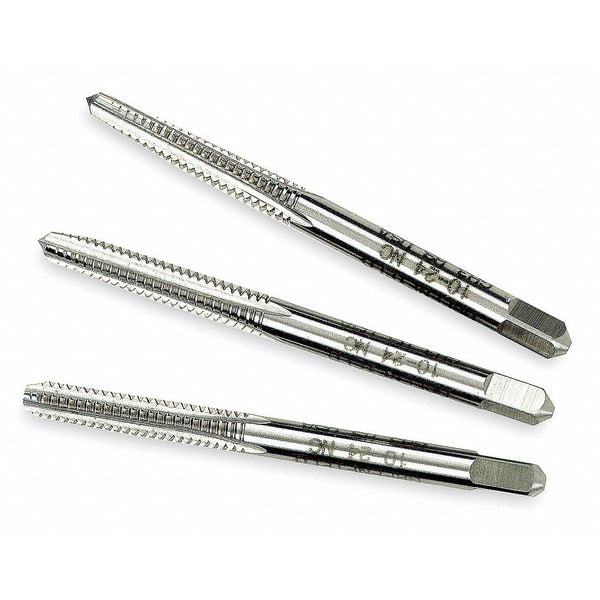

Hand Tap Set, 3 PC, HSS, #10-32, H3 Limit
| Item | Tap Set |
|---|---|
| Overall Length | 2-3/8 in |
| Tap Material | High Speed Steel |
| Tap Finish | Bright (Uncoated) |
| Tap Thread Size | #10-32 |
| Thread Direction | Right Hand |
| Number of Flutes | 4 |
| Shank Dia. | 3/16 in |
| Number of Pieces | 3 |
| Tap Style | Straight Flute |
| Includes | One Each Taper 4AHN4, Plug 4AHN5, Bottoming 4AHN6 |
| Standards | Unified and American National Threads |
| Tap Grouping | Tap Set |
| Tap Chamfer | Bottom |
| Tap Thread Type | UNF |
| Thread Length | 7/8 in |
| Pitch Diameter Limit | H3 |
| Tap Dimension Type | Inch |
| List Number | 5305/5303 |
| Measurement System | Decimal Inch |
| Thread Standard | UNF |
| Thread Limit | H3 |
| Package Quantity | 1 |
