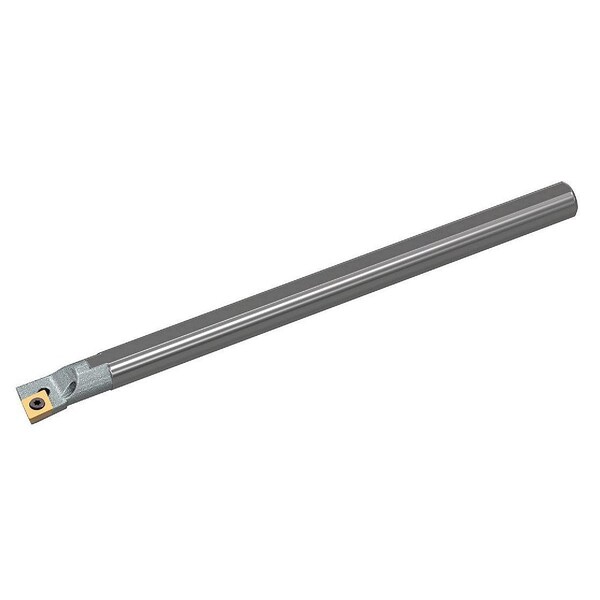

Indexable Boring Bar, A06MSCLPR2, 6 in L, High Speed Steel, 80 Degrees Diamond Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 6 in |
| Shank Material | High Speed Steel |
| Insert Shape | 80 Degrees Diamond |
| ANSI Code | A06MSCLPR2 |
| Type | Screw Clamping |
| Shank Dia. | 3/8 in |
| Cutting Direction | Right Hand |
| Rake | -4 Degrees Radial, 0 Degrees Axial |
| Lead Angle | -5 Degrees |
| Left/Right Hand | Right Hand |
| Insert Size | 21.51 |
| ISO Number | A06MSCLPR2 |
| Insert Holding Type | Screw On |
| Number of Coolant Holes | 1 |
| Toolholder Style | A-SCLP |
| Side Cutting Edge Angle | -5 deg |
| Approach Angle | 95 deg |
| Head Material | Steel |
| Insert Cutting Edge Length | 6.45 mm |
| Number of Inserts | 1 |
| Insert Style | CP |
| Cutting Height | 0.0075 in |
| Cutting Application | Boring |
| Center to Cutting Tip | 1/4 in |
| Coolant Fed | Coolant Through |
| Min. Bore Dia. | 0.48 in |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
