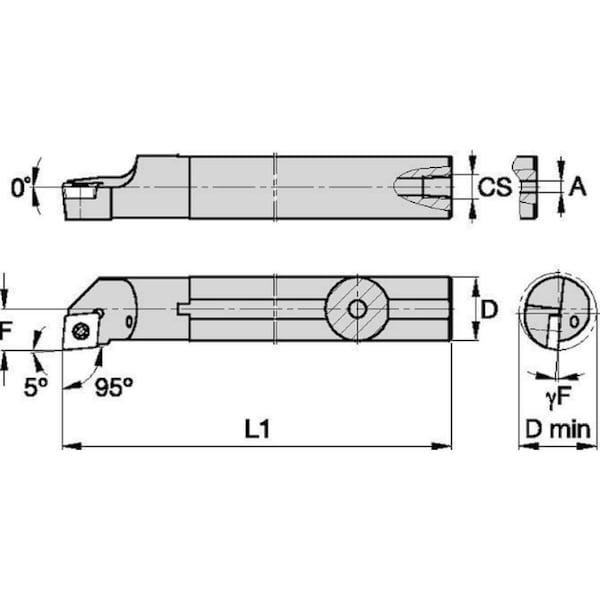

Indexable Boring Bar, A16RSCLCR09, 200.00mm L, High Speed Steel, 80 Degrees Diamond Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 200 mm |
| Shank Material | High Speed Steel |
| Insert Shape | 80 Degrees Diamond |
| ANSI Code | A16RSCLCR09 |
| Cutting Direction | Right Hand |
| Type | Screw Clamping |
| Rake | -7 Degrees Radial, 0 Degrees Axial |
| Lead Angle | -5 Degrees |
| Shank Dia. | 16 mm |
| Insert Size | 09T308 |
| Left/Right Hand | Right Hand |
| Side Cutting Edge Angle | -5 deg |
| Min. Bore Dia. | 20 mm |
| Insert Style | CC |
| Insert Holding Type | Screw On |
| Head Material | Steel |
| ISO Number | A16RSCLCR09 |
| Insert Cutting Edge Length | 9.67 mm |
| Cutting Height | 8 mm |
| Coolant Fed | Coolant Through |
| Toolholder Style | A-SCLC |
| Number of Coolant Holes | 1 |
| Center to Cutting Tip | 11 mm |

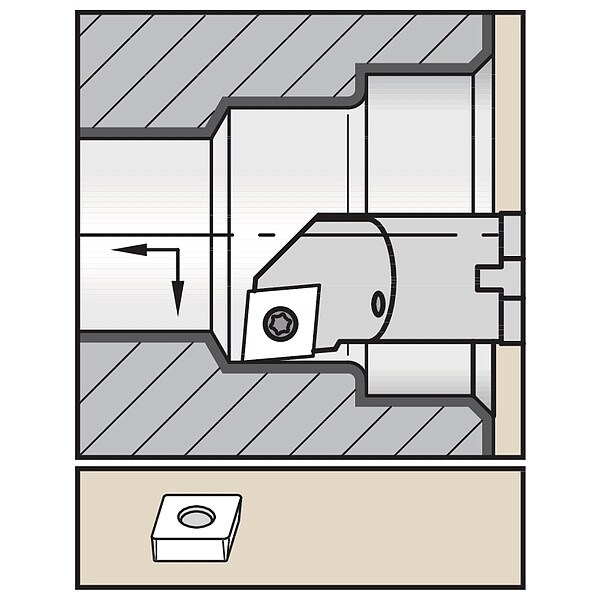

| Cutting Application | Boring |
| Number of Inserts | 1 |
| Approach Angle | 95 deg |
| Measurement System | Metric |
| Package Quantity | 1 |
