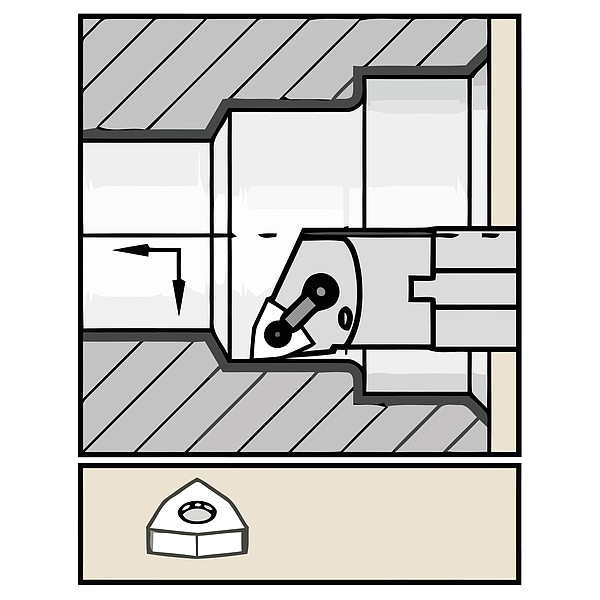

Indexable Boring Bar, A16TMWLNR4, 12 in L, High Speed Steel, Trigon Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 12 in |
| Shank Material | High Speed Steel |
| Insert Shape | Trigon |
| ANSI Code | A16TMWLNR4 |
| Shank Dia. | 1 in |
| Lead Angle | -5 Degrees |
| Left/Right Hand | Right Hand |
| Rake | -3 Degrees Radial, 5 Degrees Axial |
| Insert Size | 432 |
| Type | Clamping |
| Cutting Direction | Right Hand |
| Insert Cutting Edge Length | 8.69 mm |
| Toolholder Style | A-MWLN |
| Head Material | Steel |
| Insert Holding Type | Clamp, Lock Pin |
| Side Cutting Edge Angle | -5 deg |
| Center to Cutting Tip | 0.64 in |
| Cutting Application | Boring |
| Number of Coolant Holes | 1 |
| Number of Inserts | 1 |
| ISO Number | A16TMWLNR4 |
| Coolant Fed | Coolant Through |
| Insert Style | WN |
| Min. Bore Dia. | 1.22 in |
| Approach Angle | 95 deg |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
