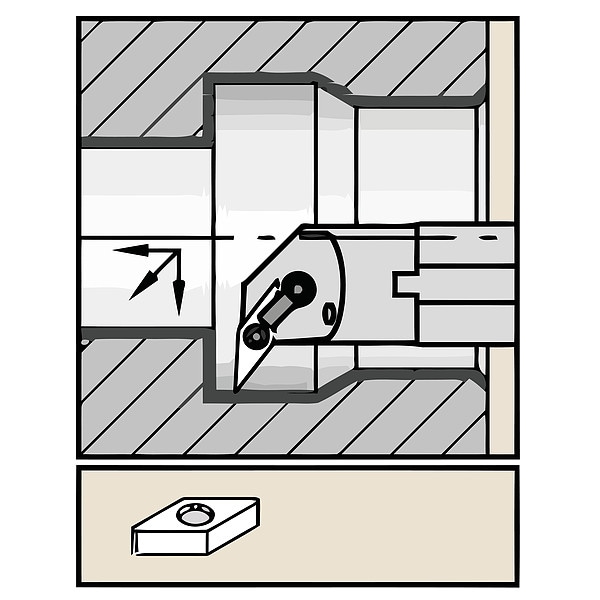

Indexable Boring Bar, A16TSVUBR3, 12 in L, High Speed Steel, 35 Degrees Diamond Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 12 in |
| Shank Material | High Speed Steel |
| Insert Shape | 35 Degrees Diamond |
| ANSI Code | A16TSVUBR3 |
| Cutting Direction | Right Hand |
| Shank Dia. | 1 in |
| Insert Size | 332 |
| Rake | -6 Degrees Radial, 0 Degrees Axial |
| Left/Right Hand | Right Hand |
| Type | Screw Clamping |
| Lead Angle | -3 Degrees |
| ISO Number | A16TSVUBR3 |
| Insert Cutting Edge Length | 16.61 mm |
| Insert Style | VB |
| Min. Bore Dia. | 1.3 in |
| Cutting Application | Boring |
| Toolholder Style | A-SVUB |
| Number of Coolant Holes | 1 |
| Center to Cutting Tip | 3/4 in |
| Insert Holding Type | Screw On |
| Coolant Fed | Coolant Through |
| Approach Angle | 93 deg |
| Number of Inserts | 1 |
| Side Cutting Edge Angle | -3 deg |
| Head Material | Steel |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
