14" OAL, Clamp
| Minimum Bore Diameter (Decimal Inch) | 2.0000 |
|---|---|
| Minimum Bore Diameter (Inch) | 2 |
| Maximum Bore Depth (Decimal Inch) | 4.5000 |
| Toolholder Style | MDUNR |
| Tool Material | Steel |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (Inch) | 14 |
| Compatible Insert Size Code | DN..432 |

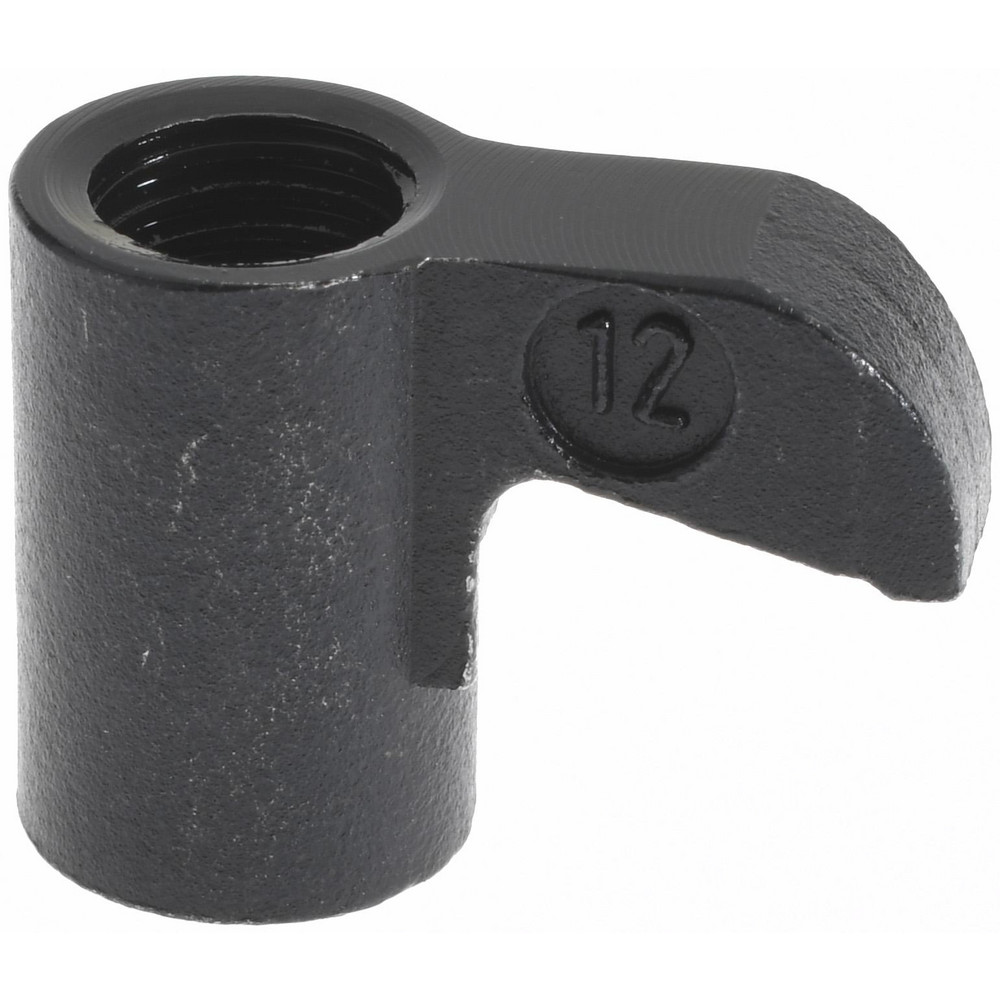

| Insert Holding Method | Clamp |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Negative |
| Rake Angle | -10.00 |
| Lead Angle | -3 |
| Series | A-MDUN |
| Insert Inscribed Circle (Inch) | 1/2 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Compatible Insert Thickness (mm) | 4.76 |
| Multi-use Tool | Yes |

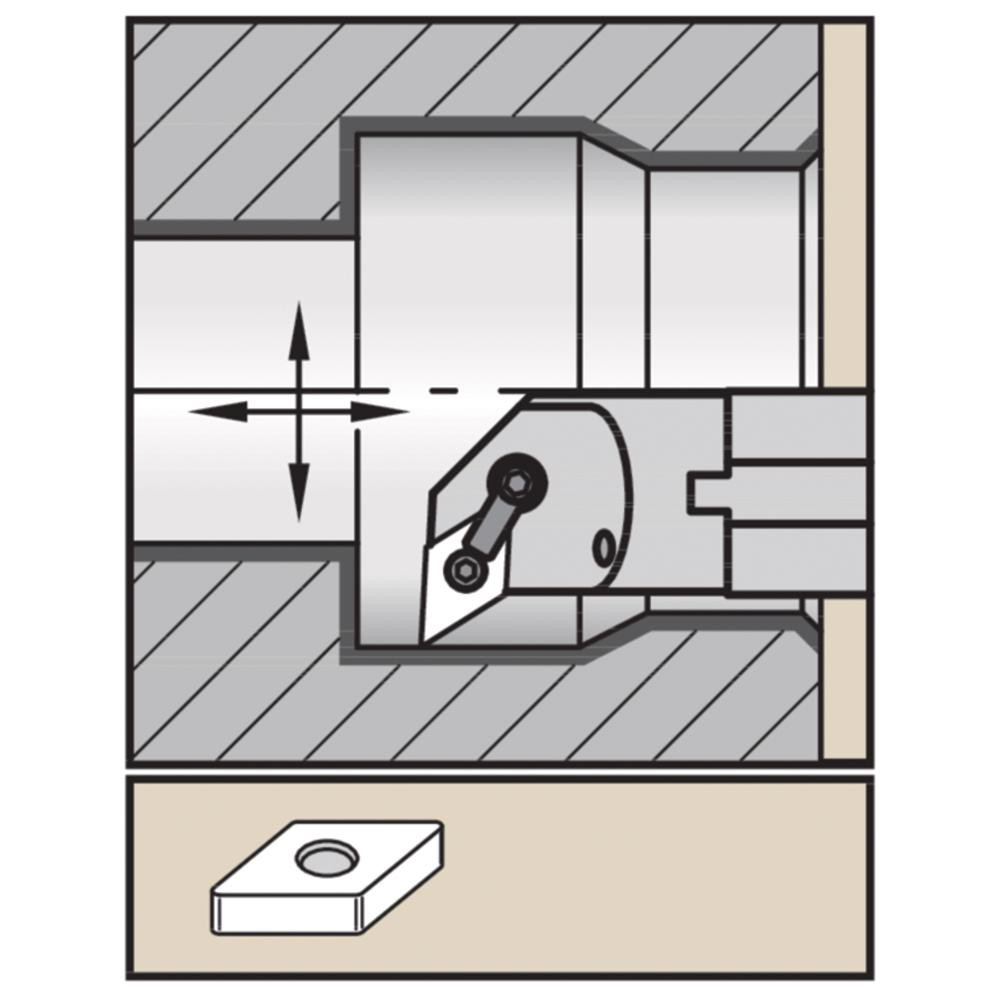

| Cutting Tool Application | Boring |

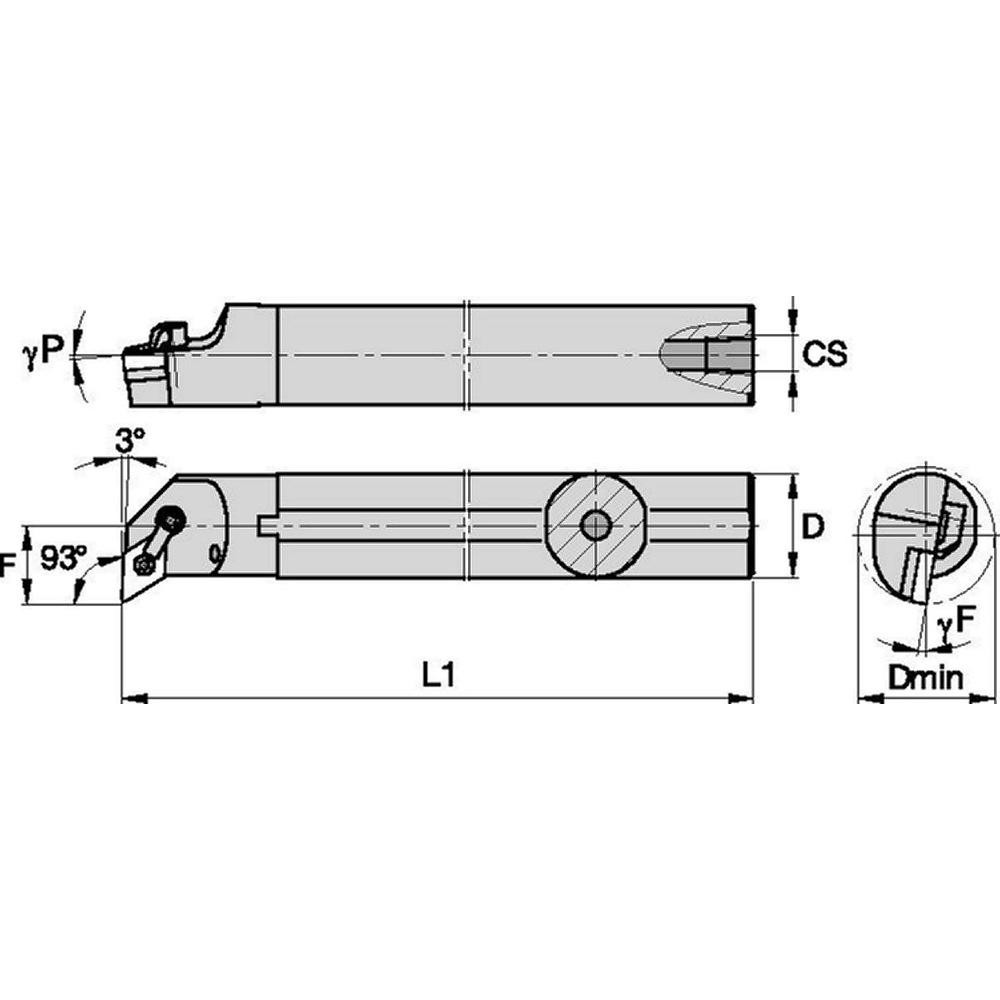

| Back of Bar to Cutting Edge (Decimal Inch) | 1.8700 |
| Center to Cutting Edge (Decimal Inch) | 1.1200 |
| Primary Workpiece Material | Universal |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Manufacturers Catalog Number | A24UMDUNR4 |
| Radial Rake | -5 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 02773554 |
