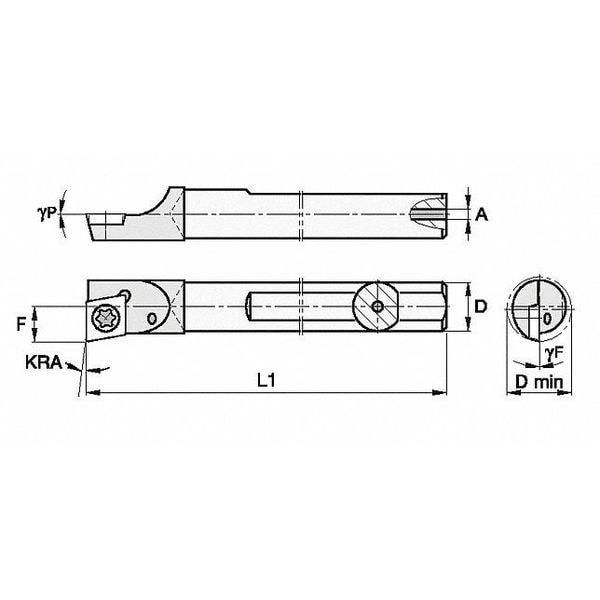

Indexable Boring Bar, CCBI18765R, 6 in L, Carbide, 80 Degrees Diamond Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 6 in |
| Shank Material | Carbide |
| Insert Shape | 80 Degrees Diamond |
| ANSI Code | CCBI18765R |
| Type | Screw Clamping |
| Cutting Direction | Right Hand |
| Shank Dia. | 3/16 in |
| Insert Size | 120,605 |
| Left/Right Hand | Right Hand |
| Rake | 0 Degrees Radial, 5 Degrees Axial |
| Lead Angle | -5 Degrees |
| Cutting Height | 0.01 in |
| Side Cutting Edge Angle | -5 deg |
| Cutting Application | Turning |
| Approach Angle | 95 deg |
| Number of Inserts | 1 |
| Insert Style | CD |
| Insert Cutting Edge Length | 4.03 mm |
| Insert Clearance Angle | 15 deg |
| ISO Number | CCBI18765R |
| Coolant Fed | Coolant Through |
| Center to Cutting Tip | 0.111 in |
| Compatible Hardware | T6 Insert Screw |
| Min. Bore Dia. | 0.218 in |
| Insert Holding Type | Screw On |
| Number of Coolant Holes | 1 |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
