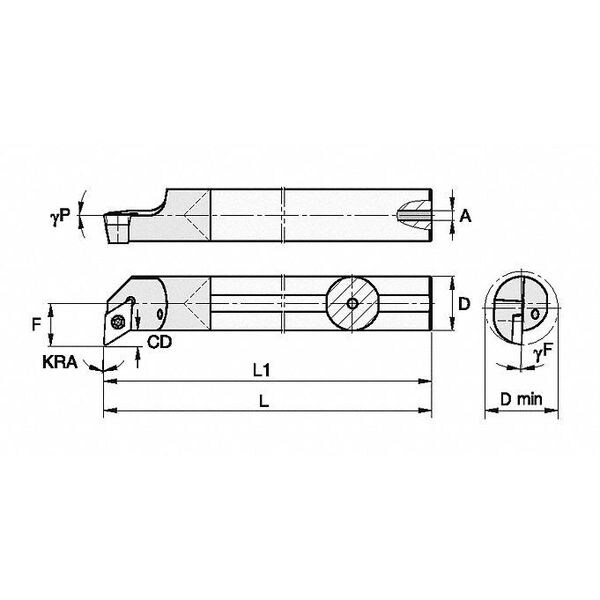

Indexable Boring Bar, CCPI25065R, 6 in L, Carbide, 45 Degrees Diamond Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 6 in |
| Shank Material | Carbide |
| Insert Shape | 45 Degrees Diamond |
| ANSI Code | CCPI25065R |
| Lead Angle | -5 Degrees |
| Rake | 0 Degrees Axial, 0 Degrees Radial |
| Insert Size | 12,105 |
| Left/Right Hand | Right Hand |
| Type | Screw Clamping |
| Shank Dia. | 1/4 in |
| Cutting Direction | Right Hand |
| Min. Bore Dia. | 0.36 in |
| Insert Clearance Angle | 11 deg |
| Compatible Hardware | T6 Insert Screw |
| Insert Cutting Edge Length | 5.61 mm |
| Cutting Application | Profiling |
| Number of Coolant Holes | 1 |
| ISO Number | CCPI25065R |
| Number of Inserts | 1 |
| Center to Cutting Tip | 0.22 in |
| Side Cutting Edge Angle | -5 deg |
| Shank Length | 5.516 in |
| Insert Holding Type | Screw On |
| Cutting Height | 0.01 in |
| Approach Angle | 95 deg |
| Coolant Fed | Coolant Through |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
