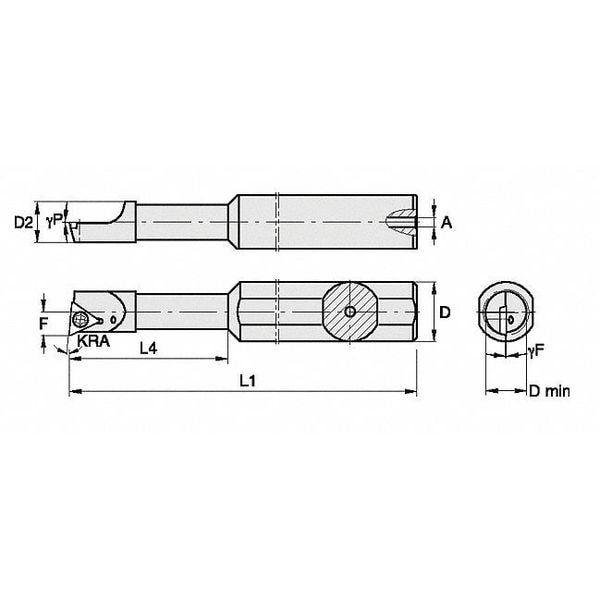

Indexable Boring Bar, QSBI37550018755R, 3-3/4 in L, High Speed Steel, Triangle Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 3-3/4 in |
| Shank Material | High Speed Steel |
| Insert Shape | Triangle |
| ANSI Code | QSBI37550018755R |
| Cutting Direction | Right Hand |
| Lead Angle | -5 Degrees |
| Shank Dia. | 1/2 in |
| Insert Size | 21,505 |
| Rake | 0 Degrees Radial, 5 Degrees Axial |
| Left/Right Hand | Right Hand |
| Type | Screw Clamping |
| Insert Style | TP |
| Approach Angle | 95 deg |
| Number of Coolant Holes | 1 |
| Cutting Height | 0.0075 in |
| Max. Bore Depth | 1-7/8 in |
| Coolant Fed | Coolant Through |
| ISO Number | QSBI37550018755R |
| Min. Bore Dia. | 7/16 in |
| Compatible Hardware | T9 Insert Screw |
| Number of Inserts | 1 |
| Insert Clearance Angle | 11 deg |
| Shank Length | 1-7/8 in |
| Insert Cutting Edge Length | 11 mm |
| Center to Cutting Tip | 0.221 in |
| Cutting Application | Turning |
| Side Cutting Edge Angle | -5 deg |
| Insert Holding Type | Screw On |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
