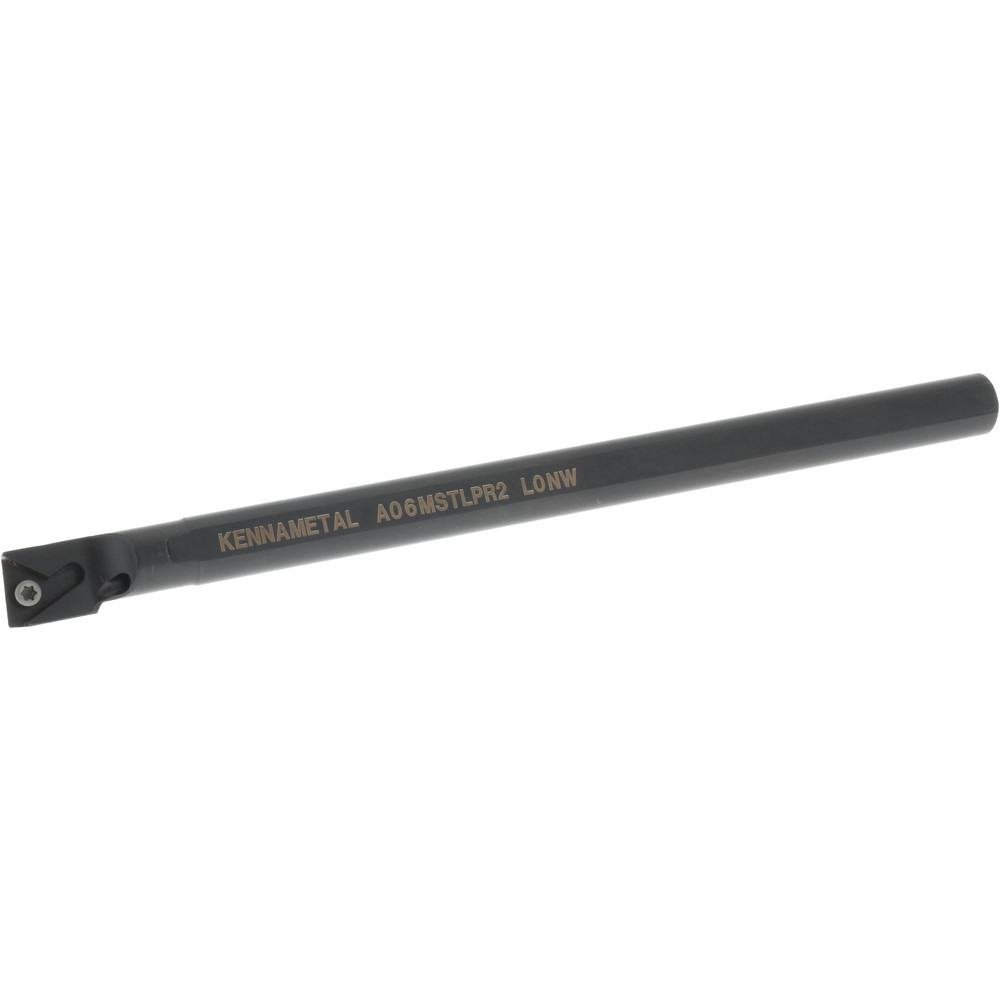

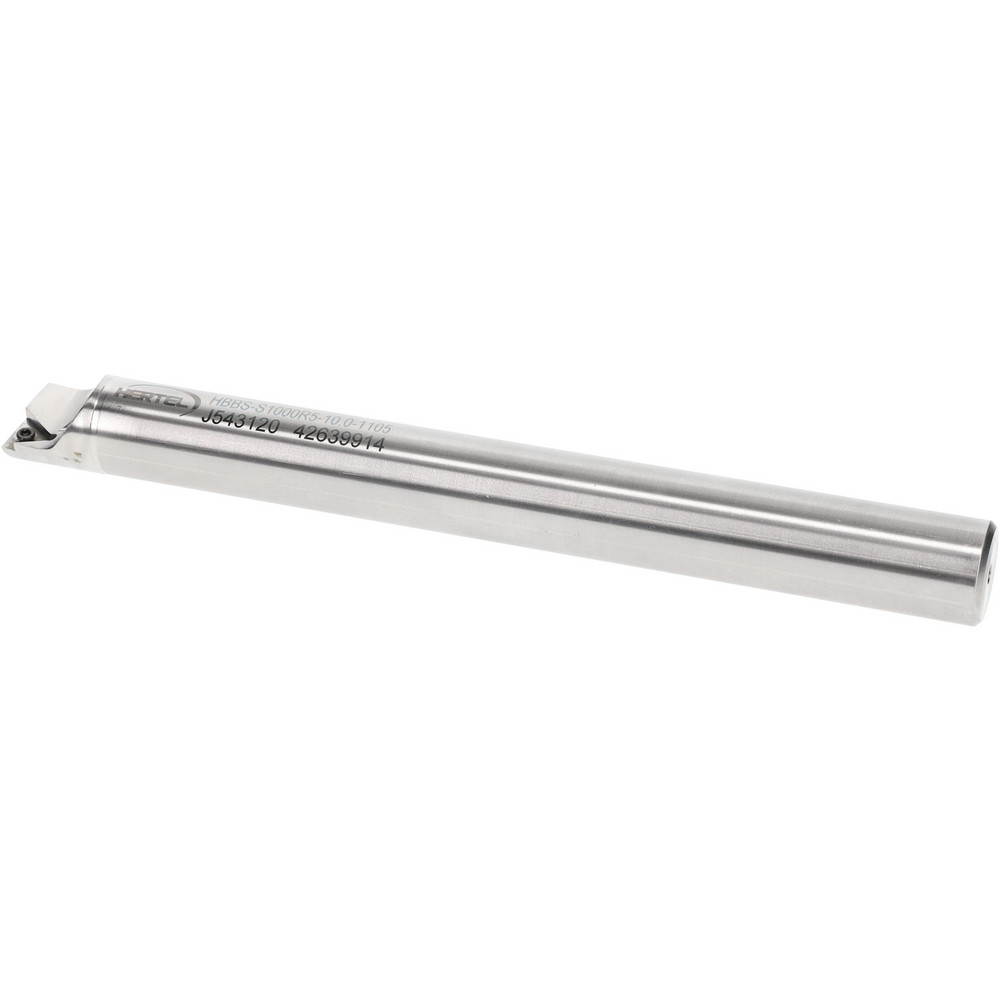

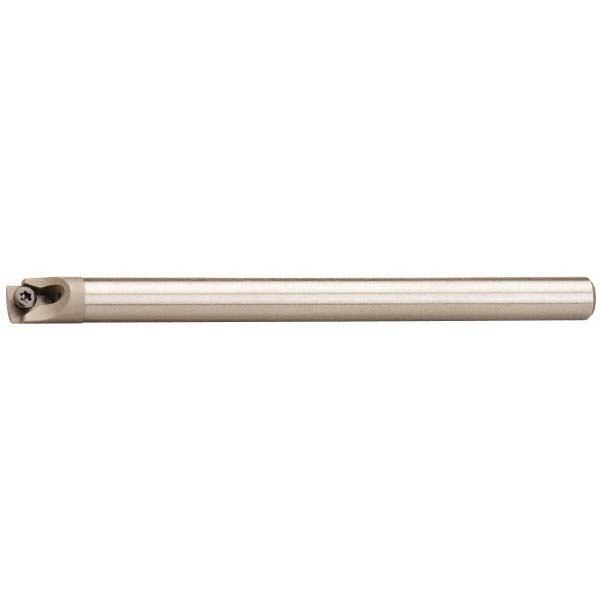

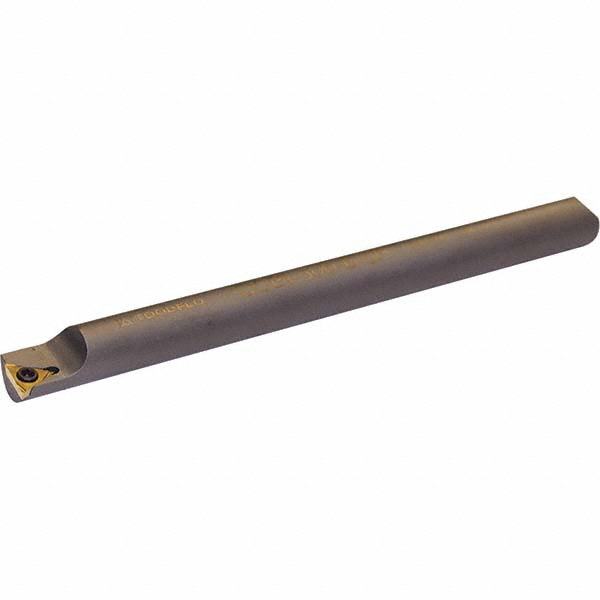

6.0000" OAL, Screw, Uses TP.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.5630 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 2.0000 |
| Toolholder Style | QSBI |
| Tool Material | Steel |
| Insert Compatibility | TP.. |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 6.0000 |
| Compatible Insert Size Code | 21505 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Rake | Positive |
| Rake Angle | 5.00 |
| Lead Angle | 95 |
| Series | QSBI |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0940 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Turning; Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Center to Cutting Edge (Decimal Inch) | 0.2960 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M; N |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Coolant Hole Diameter (Decimal Inch) | 0.1560 |
| Coolant Hole Diameter (mm) | 3.96 |
| Manufacturers Catalog Number | QSBI-500-6-5R |
| Insert Size | 21505 |
| Body Diameter | 0.5000 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 70731591 |
