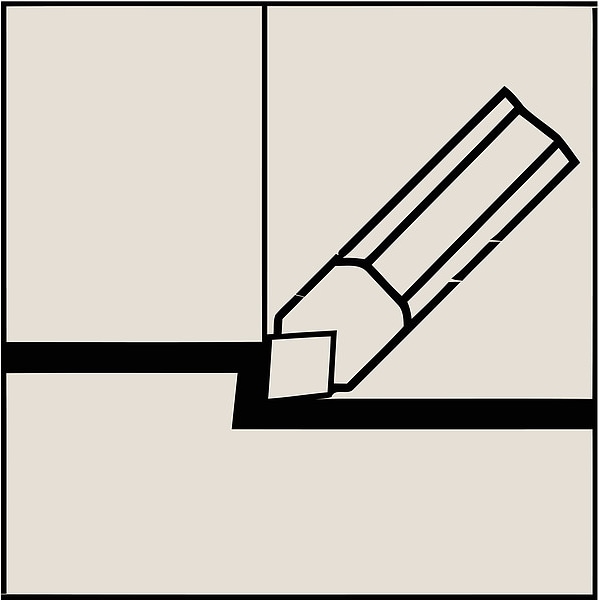

Indexable Boring Bar, S10BSCMCN06, 40.00mm L, High Speed Steel, 80 Degrees Diamond Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 40 mm |
| Shank Material | High Speed Steel |
| Insert Shape | 80 Degrees Diamond |
| ANSI Code | S10BSCMCN06 |
| Rake | -7 Degrees Radial, 0 Degrees Axial |
| Insert Size | 602 |
| Left/Right Hand | Neutral |
| Cutting Direction | Neutral |
| Shank Dia. | 10 mm |
| Type | Screw Clamping |
| Lead Angle | 40 Degrees |
| Approach Angle | 50 deg |
| Insert Style | CC |
| Insert Cutting Edge Length | 6.45 mm |
| Coolant Fed | Non-Coolant Through |
| Head Material | Steel |
| Cutting Application | Boring |
| ISO Number | S10BSCMCN06 |
| Side Cutting Edge Angle | 40 deg |
| Cutting Height | 7 mm |
| Insert Holding Type | Screw On |
| Measurement System | Metric |
| Package Quantity | 1 |
