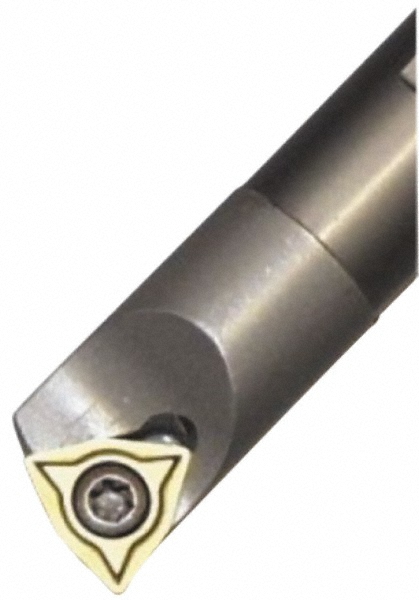

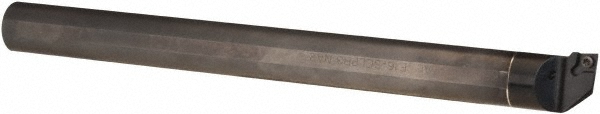

12.0000" OAL, Screw
| Minimum Bore Diameter (Decimal Inch) | 1.1000 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 7.0000 |
| Toolholder Style | SCBI |
| Tool Material | Solid Carbide |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (Inch) | 12 |
| Compatible Insert Size Code | TP..3205 |

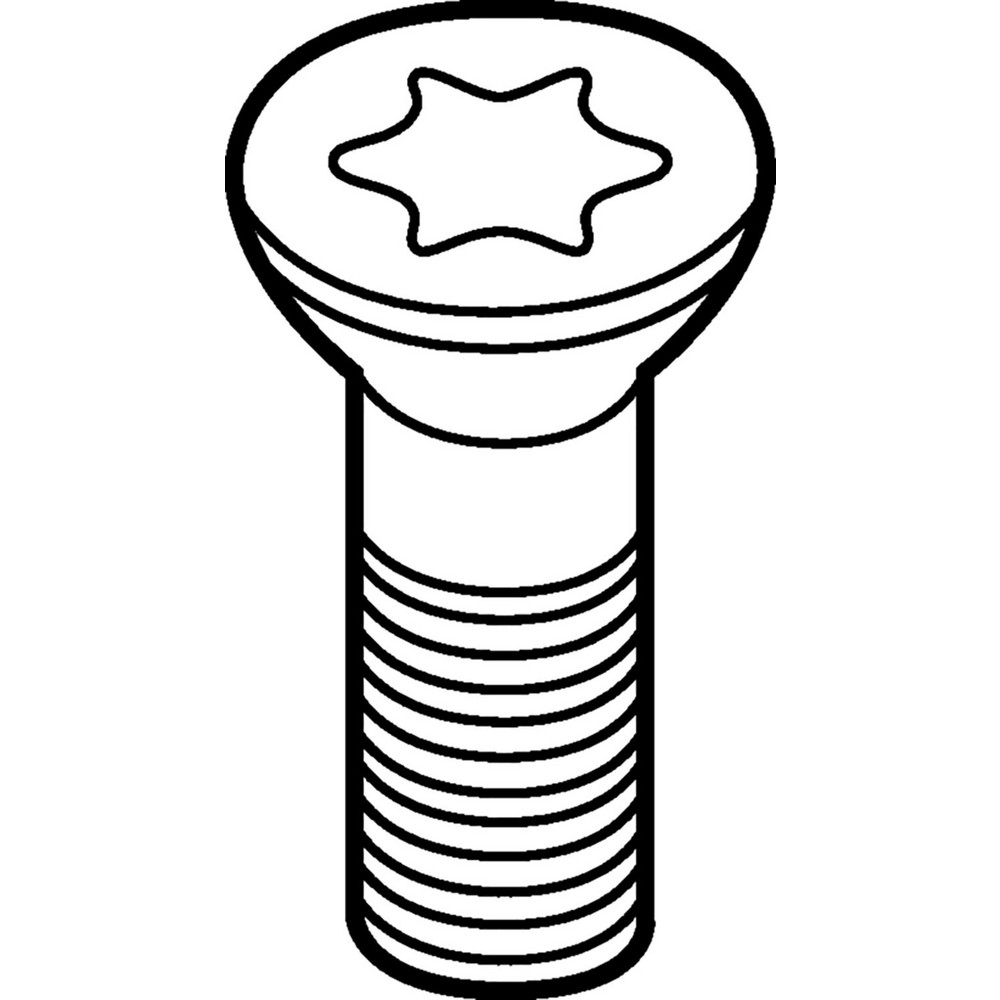

| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Rake | Positive |
| Rake Angle | 0.00 |
| Lead Angle | -5 |
| Series | SCBI |
| Insert Inscribed Circle (Inch) | 3/8 |
| Compatible Insert Thickness (Decimal Inch) | 0.1250 |
| Compatible Insert Thickness (mm) | 3.18 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |

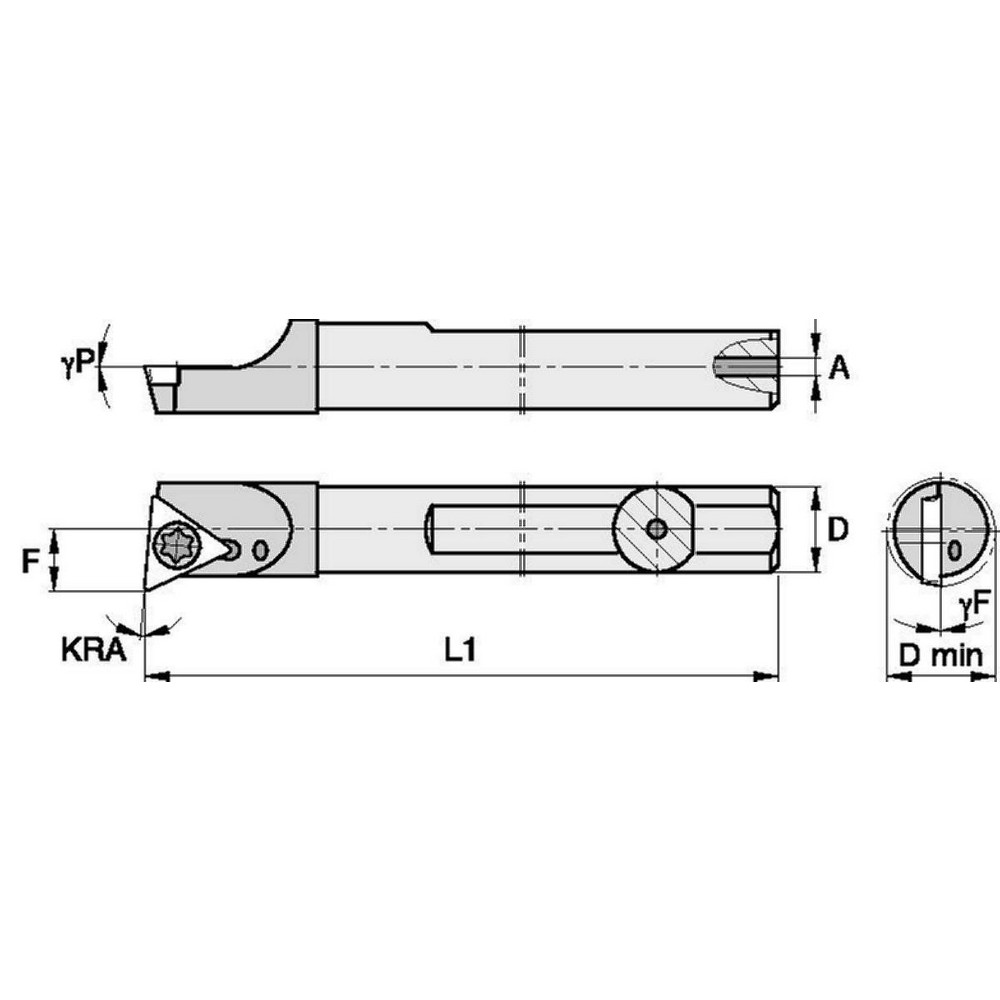

| Back of Bar to Cutting Edge (Decimal Inch) | 1.0850 |
| Center to Cutting Edge (Decimal Inch) | 0.5850 |
| Primary Workpiece Material | Universal |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Hole Diameter (Decimal Inch) | 0.3120 |
| Manufacturers Catalog Number | SCBI1000125R |
| Radial Rake | 5 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 02770618 |
