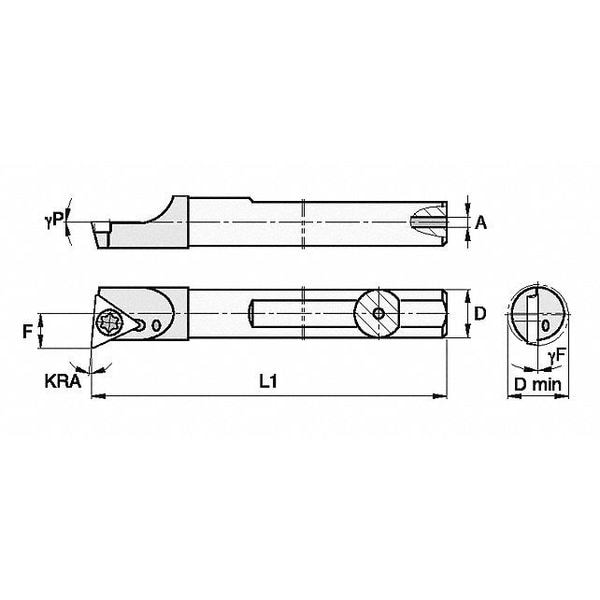

Indexable Boring Bar, SCBI1000125R, 12 in L, Carbide, Triangle Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 12 in |
| Shank Material | Carbide |
| Insert Shape | Triangle |
| ANSI Code | SCBI1000125R |
| Shank Dia. | 1 in |
| Lead Angle | -5 Degrees |
| Cutting Direction | Right Hand |
| Insert Size | 3,205 |
| Rake | 0 Degrees Radial, 5 Degrees Axial |
| Type | Screw Clamping |
| Left/Right Hand | Right Hand |
| Insert Style | TP |
| Number of Inserts | 1 |
| Center to Cutting Tip | 0.585 in |
| Cutting Height | 0.0075 in |
| Shank Length | 10.609 in |
| Insert Clearance Angle | 11 deg |
| Insert Holding Type | Screw On |
| Coolant Fed | Coolant Through |
| Compatible Hardware | T10 Insert Screw |
| Side Cutting Edge Angle | -5 deg |
| Number of Coolant Holes | 1 |
| Approach Angle | 95 deg |
| Cutting Application | Turning |
| ISO Number | SCBI1000125R |
| Insert Cutting Edge Length | 16.5 mm |
| Min. Bore Dia. | 1.1 in |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
