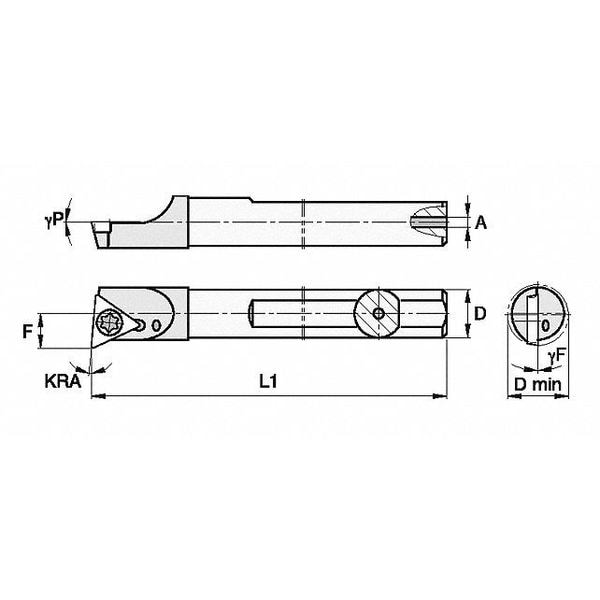

Indexable Boring Bar, SCBI625105R, 10 in L, Carbide, Triangle Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 10 in |
| Shank Material | Carbide |
| Insert Shape | Triangle |
| ANSI Code | SCBI625105R |
| Shank Dia. | 5/8 in |
| Left/Right Hand | Right Hand |
| Type | Screw Clamping |
| Insert Size | 3,205 |
| Lead Angle | -5 Degrees |
| Rake | 0 Degrees Radial, 5 Degrees Axial |
| Cutting Direction | Right Hand |
| Coolant Fed | Coolant Through |
| Side Cutting Edge Angle | -5 deg |
| Number of Inserts | 1 |
| Approach Angle | 95 deg |
| Insert Cutting Edge Length | 16.5 mm |
| Shank Length | 8.818 in |
| Insert Holding Type | Screw On |
| ISO Number | SCBI625105R |
| Number of Coolant Holes | 1 |
| Cutting Application | Turning |
| Compatible Hardware | T10 Insert Screw |
| Min. Bore Dia. | 0.72 in |
| Insert Style | TP |
| Insert Clearance Angle | 11 deg |
| Cutting Height | 0.0075 in |
| Center to Cutting Tip | 0.393 in |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
