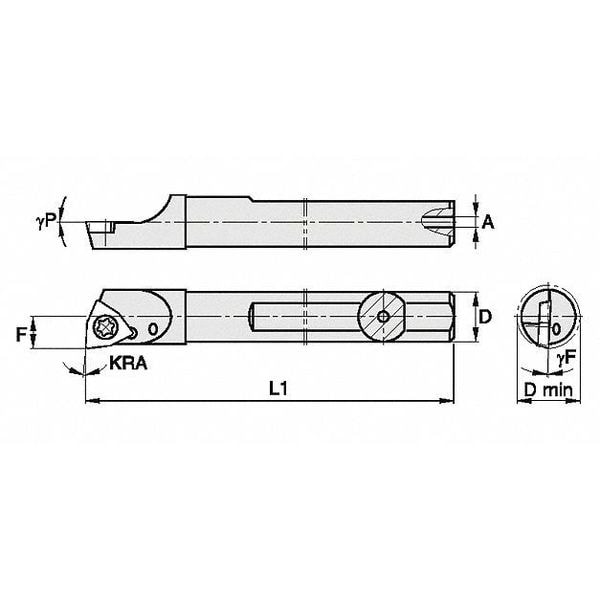

Indexable Boring Bar, SCBIW625103R, 10 in L, Carbide, Trigon Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 10 in |
| Shank Material | Carbide |
| Insert Shape | Trigon |
| ANSI Code | SCBIW625103R |
| Type | Screw Clamping |
| Left/Right Hand | Right Hand |
| Lead Angle | -3 Degrees |
| Shank Dia. | 5/8 in |
| Cutting Direction | Right Hand |
| Rake | -3 Degrees Radial, 0 Degrees Axial |
| Insert Size | 3,251 |
| Insert Style | WP |
| ISO Number | SCBIW625103R |
| Cutting Height | 0.0075 in |
| Insert Cutting Edge Length | 6.52 mm |
| Number of Coolant Holes | 1 |
| Compatible Hardware | T15 Insert Screw |
| Min. Bore Dia. | 0.673 in |
| Shank Length | 8.818 in |
| Coolant Fed | Coolant Through |
| Side Cutting Edge Angle | -3 deg |
| Center to Cutting Tip | 0.345 in |
| Insert Clearance Angle | 11 deg |
| Number of Inserts | 1 |
| Cutting Application | Turning |
| Approach Angle | 93 deg |
| Insert Holding Type | Screw On |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
