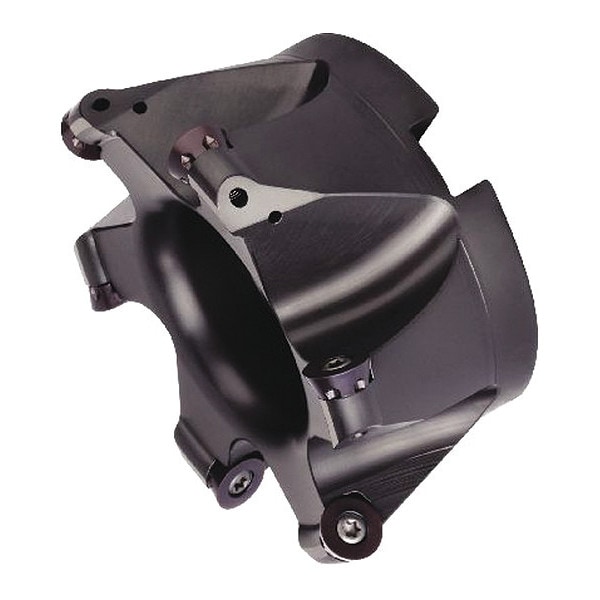

Indexable Face Mill, M100 Series, High Speed Steel, 0.2362 in Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | M100 |
| Overall Length | 1-5/8 in |
| Depth of Cut | 0.2362 in |
| Material - Machining | High Speed Steel |
| Insert Size | 1204 |
| Cutting Direction | Right Hand |
| Number of Flutes | 5 |
| Type | Face Mill |
| Insert Shape | Round |
| Features | Anti-Rotation Feature for Top Security |
| Insert Style | RD |
| Number of Inserts | 5 |
| Hub Outside Dia. | 1.7 in |
| Max. Speed | 15,000 rpm |
| Insert Holding Type | Screw |
| Coolant Fed | Coolant Through |
| Arbor Dia. | 3/4 in |
| ANSI Code | M100D200Z05S075RD12 |
| Max. Cutting Dia. | 2 in |
| ISO Number | M100D200Z05S075RD12 |
| Compatible Hardware | 3/8"-24 x 1 in Socket Head Cap Screw, Insert Screw M3.5x0.6 x 8.9 T15, Screw 3/8"-24 x 1 in LG Coolant G, Torx Wrench |
| Cutting Application | 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End |
| Material | High Speed Steel |
| Package Quantity | 1 |
