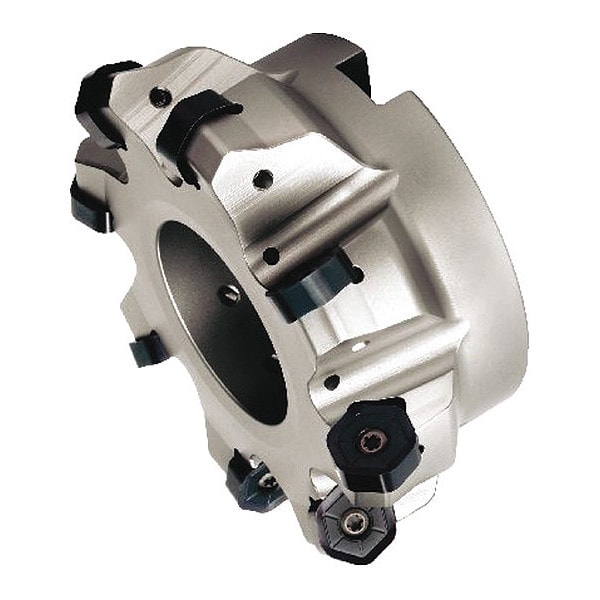

Indexable Face Mill, M1200 Series, 3" Max Cut Dia, High Speed Steel, 4.50mm Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | M1200 |
| Cutting Dia. | 3 in |
| Overall Length | 44.45 mm |
| Number of Inserts Required | 5 |
| Depth of Cut | 4.5 mm |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Shank Dia. | 1 in |
| Insert Size | 0905 |
| Insert Holding Type | Screw |
| ISO Number | M1200D300Z05S100HN09 |
| Insert Shape | 120 Degrees Hexagon |
| Arbor Dia. | 1 in |
| Max. Cutting Dia. | 87.2 mm |
| Features | Low Cutting Forces for Maximum Productivity, Twelve Cutting Edges |
| Hub Outside Dia. | 55.6 mm |
| Coolant Fed | Coolant Through |
| Rake | -5 Degrees Radial |
| Insert Style | HNGJ ANENLD |
| Number of Inserts | 5 |
| Max. Speed | 8,300 rpm |
| ANSI Code | M1200D300Z05S100HN09 |
| Cutting Application | Side and Face Milling |
| Compatible Hardware | 1/2"-20 UNF x 1 in Socket Head Cap Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver |
| Number of Flutes | 5 |
| Package Quantity | 1 |
