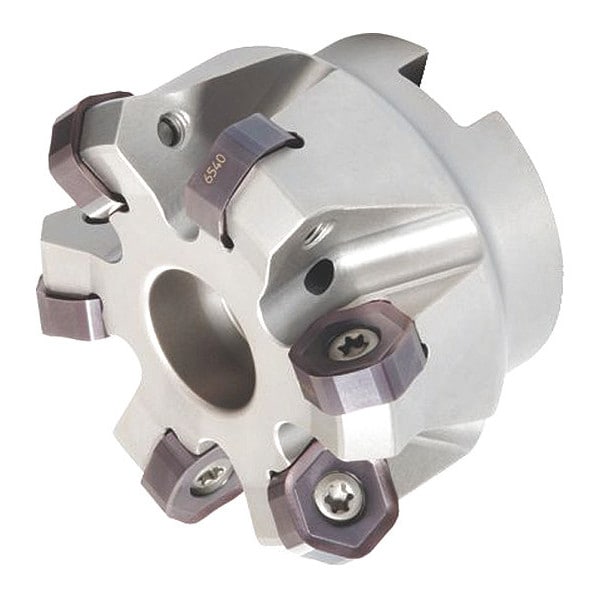

Indexable Face Mill, M1200 Series, High Speed Steel, 3.50mm Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | M1200 |
| Overall Length | 40 mm |
| Number of Inserts Required | 4 |
| Depth of Cut | 3.5 mm |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Shank Dia. | 3/4 in |
| Insert Size | 0704 |
| Max. Speed | 12,500 rpm |
| Max. Cutting Dia. | 59.51 mm |
| Coolant Fed | Coolant Through |
| ISO Number | M1200D200Z04S075HN07 |
| Compatible Hardware | 3/8"-24 x 1 in Socket Head Cap Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver |
| Rake | -7 Degrees Axial, -7.4 Degrees Radial |
| Cutting Application | Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer |
| Number of Inserts | 4 |
| ANSI Code | M1200D200Z04S075HN07 |
| Insert Shape | 120 Degrees Hexagon |
| Arbor Dia. | 3/4 in |
| Insert Style | HNGJ ANENLD |
| Hub Outside Dia. | 44.45 mm |
| Features | First Choice for Low Depth of Cut Face Milling, Maximum Number of Teeth per Diameter, Twelve Cutting Edges |
| Insert Holding Type | Screw |
| Number of Flutes | 4 |
| Package Quantity | 1 |
