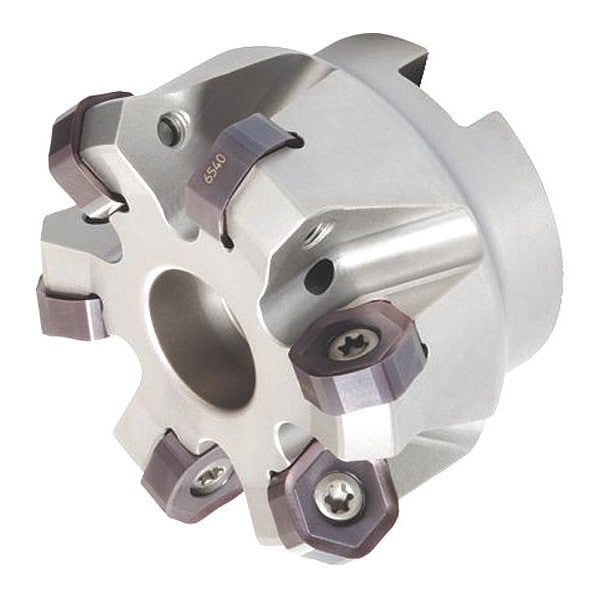

Indexable Face Mill, M1200 Series, High Speed Steel, 3.50mm Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | M1200 |
| Overall Length | 44.45 mm |
| Depth of Cut | 3.5 mm |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Insert Size | 0704 |
| Insert Shape | 120 Degrees Hexagon |
| Type | Face Mill |
| Number of Flutes | 8 |
| Rake | -7 Degrees Axial, -5.6 Degrees Radial |
| ISO Number | M1200D300Z08S100HN07 |
| Insert Style | HNGJ ANENLD |
| Cutting Application | Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer |
| Max. Cutting Dia. | 84.9 mm |
| Coolant Fed | Coolant Through |
| Features | First Choice for Low Depth of Cut Face Milling, Maximum Number of Teeth per Diameter, Twelve Cutting Edges |
| ANSI Code | M1200D300Z08S100HN07 |
| Insert Holding Type | Screw |
| Max. Speed | 8,300 rpm |
| Compatible Hardware | 1/2"-20 UNF x 1 in Socket Head Cap Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver |
| Hub Outside Dia. | 55.6 mm |
| Number of Inserts | 8 |
| Arbor Dia. | 1 in |
| Shop By | Closeouts |
| Material | High Speed Steel |
| Package Quantity | 1 |
