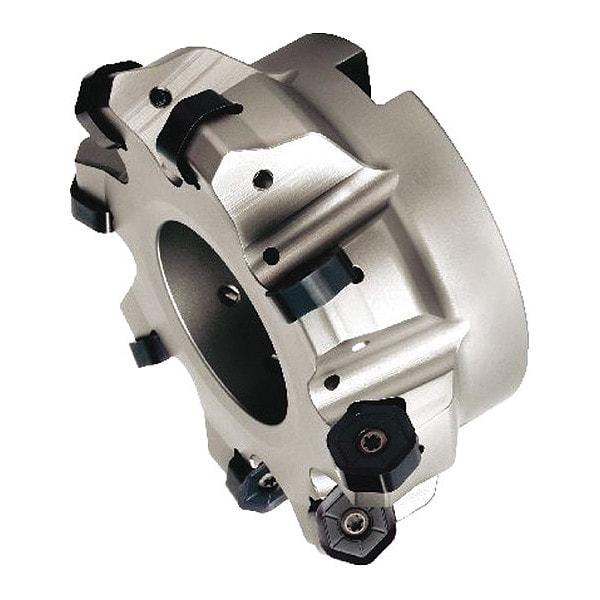

Indexable Face Mill, M1200 Series, High Speed Steel, 4.50mm Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | M1200 |
| Overall Length | 60.45 mm |
| Depth of Cut | 4.5 mm |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Insert Size | 0905 |
| Type | Face Mill |
| Insert Shape | 120 Degrees Hexagon |
| Number of Flutes | 16 |
| Rake | -3.1 Degrees Radial |
| Coolant Fed | Coolant Through |
| Insert Holding Type | Screw |
| ISO Number | M1200D600Z16S200HN09 |
| Insert Style | HNGJ ANENLD |
| Hub Outside Dia. | 123.93 mm |
| Cutting Application | Side and Face Milling |
| ANSI Code | M1200D600Z16S200HN09 |
| Max. Speed | 4,100 rpm |
| Max. Cutting Dia. | 163.37 mm |
| Compatible Hardware | Insert Screw M4x0.7 x 10 T15, Torx Driver |
| Features | Low Cutting Forces for Maximum Productivity, Twelve Cutting Edges |
| Arbor Dia. | 2 in |
| Material | High Speed Steel |
| Package Quantity | 1 |
