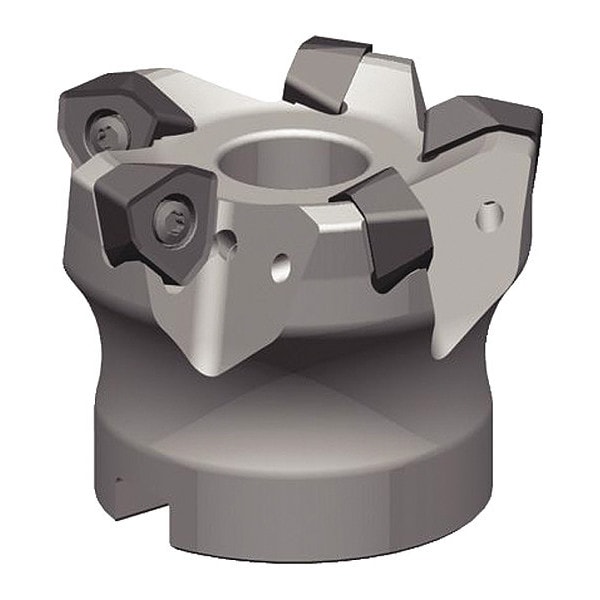

Indexable Face Mill, M370 Series, High Speed Steel, 0.0780 in Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | M370 |
| Overall Length | 2 in |
| Depth of Cut | 0.078 in |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Insert Size | 120713 |
| Type | Face Mill |
| Number of Flutes | 6 |
| Insert Shape | 60 Degrees Triangle |
| Rake | -11 Degrees Axial, 9 Degrees Radial |
| Cutting Application | 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End |
| Number of Inserts | 6 |
| Features | Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges |
| Arbor Dia. | 1-1/2 in |
| Max. Cutting Dia. | 4 in |
| Coolant Fed | Coolant Through |
| Insert Holding Type | Screw |
| ISO Number | M370D400Z06S150WO12 |
| Compatible Hardware | Coolant Screw Assembly, Insert Screw M4x0.7 x 11.5 IP15, KLS-15 Shell Mill Lock Screw, Torx Plus Drive Wrench DT15IP |
| Max. Speed | 13,700 rpm |
| ANSI Code | M370D400Z06S150WO12 |
| Hub Outside Dia. | 3-5/8 in |
| Insert Style | WOEJ R |
| Material | High Speed Steel |
| Package Quantity | 1 |
