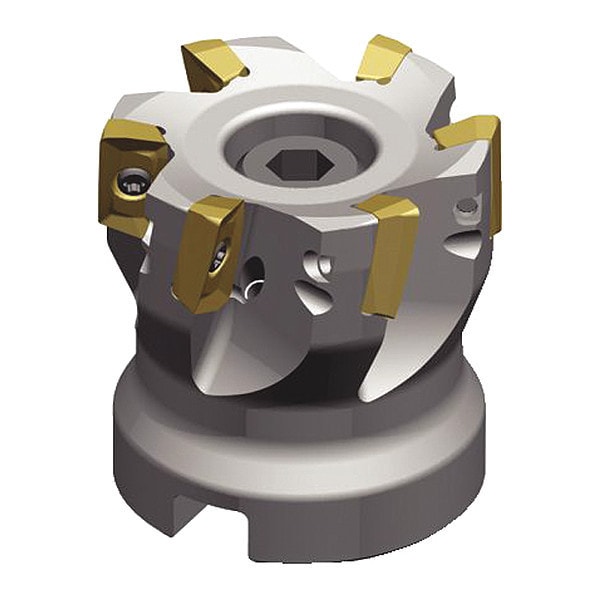

Indexable Face Mill, VSM11 Series, 2" Max Cut Dia, High Speed Steel, 0.4460 in Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | VSM11 |
| Cutting Dia. | 2 in |
| Overall Length | 1.575 in |
| Number of Inserts Required | 8 |
| Depth of Cut | 0.446 in |
| Material - Machining | High Speed Steel |
| Shank Shape | Socket Head Cap Screw |
| Cutting Direction | Right Hand |
| Shank Dia. | 3/4 in |
| Insert Size | 110408 |
| Coolant Fed | Coolant Through |
| Insert Style | XD.T PD R |
| Max. Speed | 19,700 rpm |
| ISO Number | VSM11D200Z08S075XD11 |
| Features | Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish |
| Toolholder Style | XDPT11 |
| Min. Cutting Dia. | 2 in |
| Cutting Application | Face Milling, Helical Milling, Pocketing, Ramping:Blank, Side and Face Milling, Side/Shoulder Milling: Square End |
| ANSI Code | VSM11D200Z08S075XD11 |
| Rake | 12 Degrees Axial, -4.967 Degrees Radial |
| Insert Holding Type | Screw |
| Number of Inserts | 8 |
| Compatible Hardware | 3/8"-24 x 1 in Socket Head Cap Screw, Insert Screw M2.5x0.45 x 5.9 T8, Screw 3/8"-24 x 1 in Coolant G |
| Side Cutting Edge Angle | 0 deg |
| Insert Shape | 75 Degrees Parallelogram |
| Max. Cutting Dia. | 2 in |
| Arbor Dia. | 3/4 in |
| Number of Flutes | 8 |
| Package Quantity | 1 |
