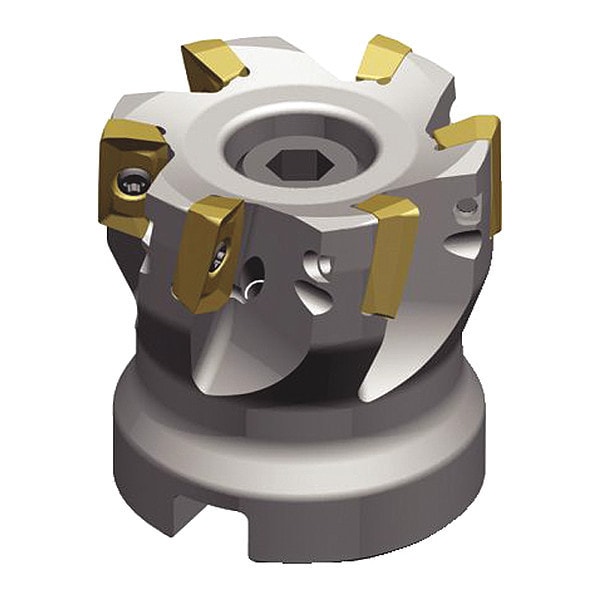

Indexable Face Mill, VSM11 Series, High Speed Steel, 11.40mm Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | VSM11 |
| Overall Length | 40 mm |
| Depth of Cut | 11.4 mm |
| Material - Machining | High Speed Steel |
| Insert Size | 110408 |
| Cutting Direction | Right Hand |
| Type | Face Mill |
| Insert Shape | 75 Degrees Parallelogram |
| Number of Flutes | 6 |
| Rake | -5.733 Degrees Radial, 10.617 Degrees Axial |
| ANSI Code | VSM11D150Z06S075XD11 |
| ISO Number | VSM11D150Z06S075XD11 |
| Hub Outside Dia. | 36.07 mm |
| Arbor Dia. | 3/4 in |
| Features | Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 0 Degrees Capability |
| Max. Speed | 23,300 rpm |
| Compatible Hardware | 3/8"-24 x 1 in Socket Head Cap Screw, Insert Screw M2.5x0.45 x 5.9 T8, Screw 3/8"-24 x 1 in LG Coolant G, Torx Wrench TX8 |
| Insert Holding Type | Screw |
| Coolant Fed | Coolant Through |
| Number of Inserts | 6 |
| Insert Style | XD.T PD R |
| Cutting Application | Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End |
| Side Cutting Edge Angle | 0 deg |
| Material | High Speed Steel |
| Package Quantity | 1 |
